2001 Toyota PriusFACTORY OEM SERVICE PROCEDURE

Power Window Switch Continuity Test (Driver's Switch)

NOTE: Avalon incorporates separate ECUs which includes window switches for both driver and passenger front door. Switch continuity testing is not available.

Using an ohmmeter, check continuity between specified terminals with driver's power window switch in specified position. See appropriate DRIVER'S POWER WINDOW SWITCH CONTINUITY TEST table. See Fig 1 - Fig 8 . If continuity does not exist at specified terminals, replace power window switch. See POWER WINDOW SWITCH  under REMOVAL & INSTALLATION.

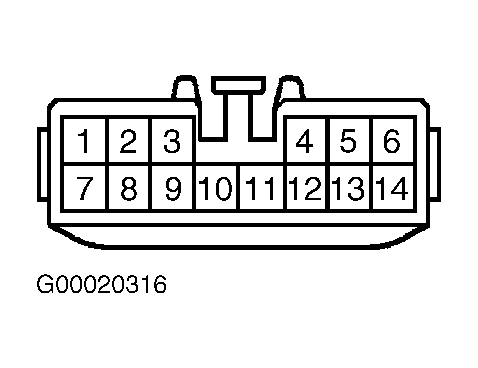

DRIVER'S POWER WINDOW SWITCH CONTINUITY TEST (CAMRY)

Application & Position (1) Terminals No.
Driver's Switch
Locked & Unlocked
UP 3, 8 & 9; 4, 5 & 6
OFF 3, 4 & 5; 4, 5 & 6
DOWN 3, 4 & 5; 6, 8 & 9
Passenger's Switch
Locked
UP 8, 9 & 11
OFF 11 & 13
DOWN 8, 9 & 13
Unlocked
UP 4, 5 & 13; 8, 9 & 11
OFF 4, 5 & 11; 4, 5 & 13
DOWN 4, 5 & 11; 8, 9 & 13
Left Rear Switch
Locked
UP 8, 9 & 10
OFF 10 & 12
DOWN 8, 9 & 12
Unlocked
UP 4, 5 & 12; 8, 9 & 10
OFF 4, 5 & 10; 4, 5 & 12
DOWN 4, 5 & 10; 8, 9 & 12
Right Rear Switch
Locked
UP 7, 8 & 9
OFF 7 & 14
DOWN 8, 9 & 14
Unlocked
UP 4, 5 & 14; 7, 8 & 9
OFF 4, 5 & 7; 4, 5 & 14
DOWN 4,5 & 7; 8, 9 & 14
(1) See Fig 2.

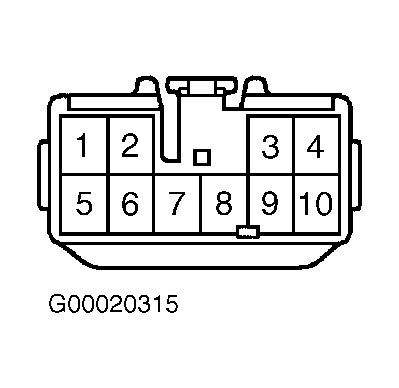

DRIVER'S POWER WINDOW SWITCH CONTINUITY TEST (CAMRY SOLARA)

Application & Position (1) Terminals No.
Driver's Switch
Locked & Unlocked
UP 1 & 4; 3 & 9
OFF 1, 3 & 4
DOWN 1 & 3; 4 & 9
Passenger's Switch
Locked
UP 8 & 9
OFF 8 & 10
DOWN 9 & 10
Unlocked
UP 1 & 10; 8 & 9
OFF 1, 8 & 10
DOWN 1 & 8; 9 & 10
(1) See Fig 3.

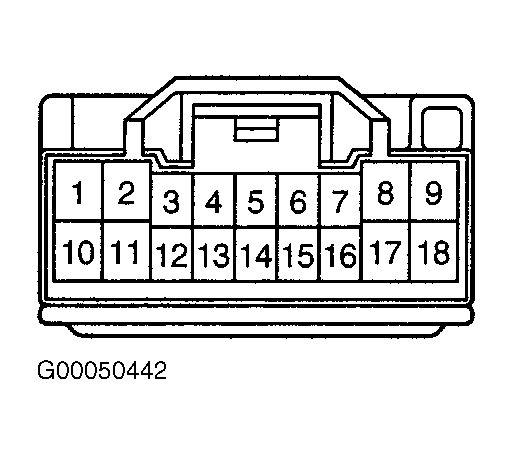

DRIVER'S POWER WINDOW SWITCH CONTINUITY TEST (CELICA)

Application & Position (1) Terminals No.
Driver's Switch
Locked & Unlocked
UP 2 & 9; 17 & 18
OFF 9 & 17; 17 & 18
DOWN 2 & 8; 9 & 17
DOWN AUTO 2 & 18; 9 & 17
Passenger's Switch
Locked
UP 1 & 11
OFF 1 & 10
DOWN 10 & 11
Unlocked
UP 1 & 11; 10 & 17
OFF 1 & 17; 10 & 17
DOWN 10 & 11; 1 & 17
(1) See Fig 4.
DRIVER'S POWER WINDOW SWITCH CONTINUITY TEST (COROLLA)

Application & Position (1) Terminals No.
Driver's Switch
Locked & Unlocked
UP 1, 10 & 11; 3, 4 & 5
OFF 1, 3, 4 & 5
DOWN 1, 3 & 4; 5, 10 & 11
Passenger's Switch
Locked
UP 10, 11 & 14
OFF 6 & 14
DOWN 6, 10 & 11
Unlocked
UP 3, 4 & 6; 10, 11 & 14
OFF 3, 4, 6 & 14
DOWN 3, 4 & 14; 6, 10 & 11
Left Rear Switch
Locked
UP 9, 10 & 11
OFF 9 & 12
DOWN 10, 11 & 12
Unlocked
UP 3, 4 & 12; 9, 10 & 11
OFF 3, 4, 9 & 12
DOWN 3, 4 & 9; 10, 11 & 12
Right Rear Switch
Locked
UP 8, 10 & 11
OFF 8 & 13
DOWN 10, 11 & 13
Unlocked
UP 3, 4 & 13; 8, 10 & 11
OFF 3, 4, 8 & 13
DOWN 3, 4 & 8; 10, 11 & 13
(1) See Fig 2.
DRIVER'S POWER WINDOW SWITCH CONTINUITY TEST (ECHO 2-DOOR)

Application & Position (1) Terminals No.
Driver's Switch
Locked & Unlocked
UP 1 & 4; 3 & 9
OFF 1 & 3; 1 & 4
DOWN 1 & 3; 4 & 9
Passenger's Switch
Locked
UP 8 & 9
OFF 8 & 10
DOWN 9 & 10
Unlocked
UP 1 & 10; 8 & 9
OFF 1 & 8; 1 & 10
DOWN 1 & 8; 9 & 10
(1) See Fig 5
DRIVER'S POWER WINDOW SWITCH CONTINUITY TEST (ECHO 4-DOOR)

Application & Position (1) Terminals No.
Driver's Switch
Locked & Unlocked
UP 1 & 10; 1 & 11; 3 & 5; 4 & 5
OFF 1 & 3; 1 & 4; 3 & 5; 4 & 5
DOWN 5 & 10; 5 & 11; 1 & 3; 1 & 4
Passenger's Switch
Locked
UP 10 & 14; 11 & 14
OFF 6 & 14
DOWN 6 & 10 & 6 & 11
Unlocked
UP 10 & 14; 11 & 14; 3 & 6; 4 & 6
OFF 3 & 14; 4 & 14; 3 & 6; 4 & 6
DOWN 6 & 10; 6 & 11; 3 & 14; 4 & 14
Left Rear Switch
Locked
UP 9 & 10; 9 & 11
OFF 9 & 12
DOWN 10 & 12; 11 & 12
Unlocked
UP 9 & 10; 9 & 11; 3 & 12; 4 & 12
OFF 3 & 9; 4 & 9; 3 & 12; 4 & 12
DOWN 10 & 12; 11 & 12; 3 & 9; 4 & 9
Right Rear Switch
Locked
UP 8 & 10; 8 & 11
OFF 8 & 13
DOWN 10 & 13; 11 & 13
Unlocked
UP 8 & 10; 8 & 11; 3 & 13; 4 & 13
OFF 3 & 8; 4 & 8; 3 & 13; 4 & 13
DOWN 10 & 13; 11 & 13; 3 & 8; 4 & 8
(1) See Fig 6.

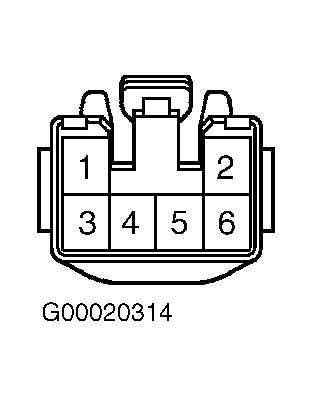

DRIVER'S POWER WINDOW SWITCH CONTINUITY TEST (MR2)

Application & Position (1) Terminals No.
Locked & Unlocked
UP MANUAL 3 & 6
OFF (2)
DOWN MANUAL 3 & 4
DOWN AUTOMATIC 3 & 4; 3 & 5
(1) See Fig 7.
(2) No continuity exists in off position.
DRIVER'S POWER WINDOW SWITCH CONTINUITY TEST (PRIUS)

Switch Position (1) Terminals No.
UP 2 & 3, 4 & 5
OFF (2) 2, 3 & 5
DOWN 2 & 4; 3 & 5
(1) See Fig 8.
(2) No continuity exists in off position.

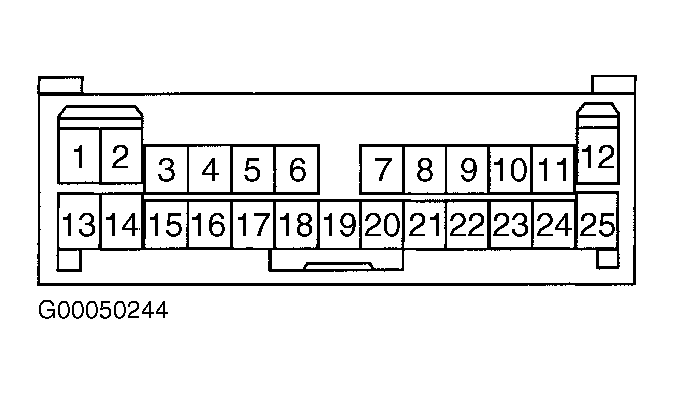

Fig 1: Identifying Driver's Power Window Master Switch Harness Connector Terminals (Avalon)
G00050244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
