2001 Toyota PriusFACTORY OEM SERVICE PROCEDURE

Headlight Control Switch

Remove necessary steering column covers for access to headlight control switch. See Figure. Disconnect 17-pin electrical connector from headlight control switch.

Using ohmmeter, check for no continuity and continuity between specified electrical terminals on headlight control switch in relation to headlight control switch position. See Fig 1. See HEADLIGHT CONTROL SWITCH CONTINUITY table. Replace headlight control switch if defective.

HEADLIGHT CONTROL SWITCH CONTINUITY

Switch Position

Switch Terminals No.

Specification

OFF

⁽¹⁾

TAIL

14 & 16

Continuity

HEAD

13, 14 & 16

Continuity

FLASH

7, 8 & 16

Continuity

LOW BEAM

16 & 17

Continuity

HIGH BEAM

7 & 16

Continuity

⁽¹⁾	There should be no continuity between any terminals.

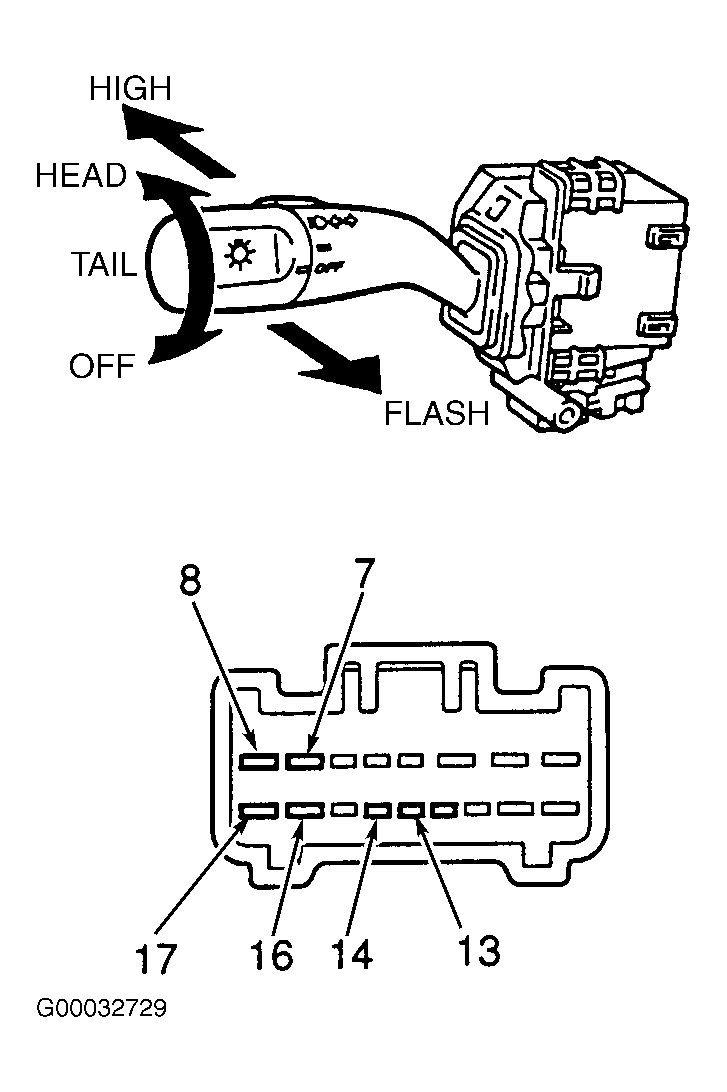

Fig 1: Identifying Headlight Control Switch Electrical Terminals & Headlight Control Switch Positions
