2001 Toyota PriusFACTORY OEM SERVICE PROCEDURE
Door Lock Control Switch
- Door lock control switch is located on passenger's side front door. See Figure. Disconnect electrical connector from door lock control switch.

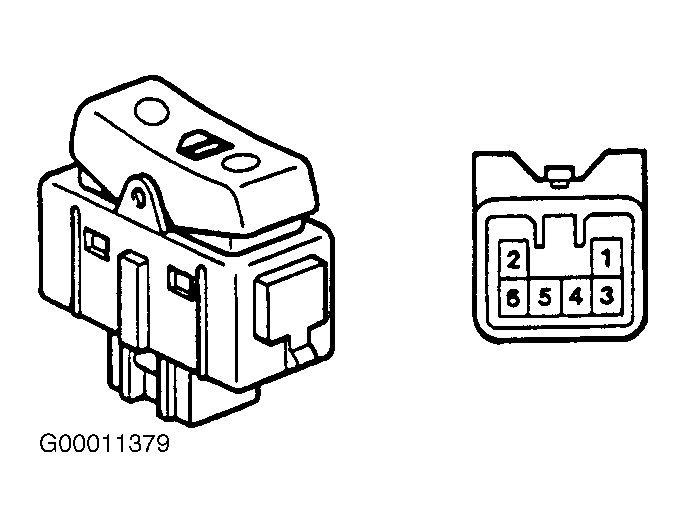

- Note door lock control switch electrical terminal identification. See Fig 1. Using ohmmeter, check that continuity is as specified door lock control switch electrical terminals in relation to door lock control switch position. See DOOR LOCK CONTROL SWITCH CONTINUITY table. Replace door lock control switch if continuity is not as specified.DOOR LOCK CONTROL SWITCH CONTINUITY
Switch Position Switch Terminals No. Specification LOCK 3 & 6 Continuity OFF (1) (1) UNLOCK 3 & 5 Continuity (1) There should be no continuity between any terminals.
