2001 Toyota PriusFACTORY OEM SERVICE PROCEDURE
DRL Relay
- Ensure ignition is off. Remove DRL relay from fuse/relay box located at passenger's side of engine compartment, near strut tower.

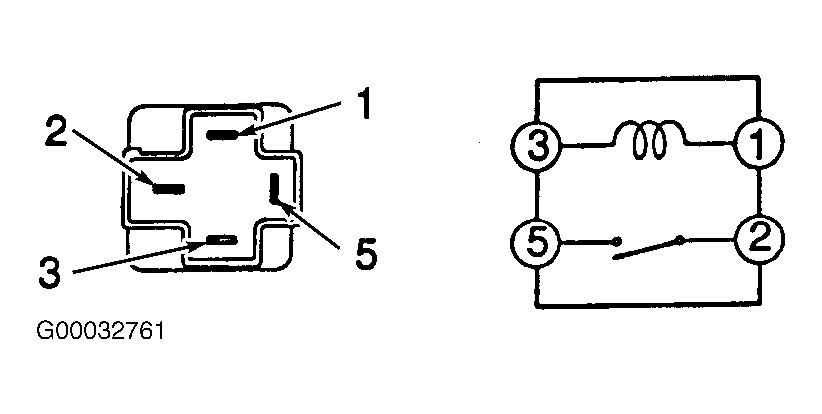

- Note identification of electrical terminals on DRL relay. See Fig 1. Using ohmmeter, check that no continuity exists between terminals No. 2 and 5 on DRL relay. Check that continuity exists between terminals No. 1 and 3 on DRL relay.
- Using jumper wires, apply battery voltage and ground to terminals No. 1 and 3 on DRL relay. Check that continuity now exists between terminals No. 2 and 5 on DRL relay. See Fig 1. Replace DRL relay if defective.
