2001 Toyota Avalon XLSFACTORY OEM SERVICE PROCEDURE
Front Wheel Alignment: Inspection
NOTE:
w/ VSC:
Be sure to perform the steering angle sensor zero point calibration after adjusting the front wheel alignment (PRE-CHECK ).
Be sure to perform the steering angle sensor zero point calibration after adjusting the front wheel alignment (PRE-CHECK ).

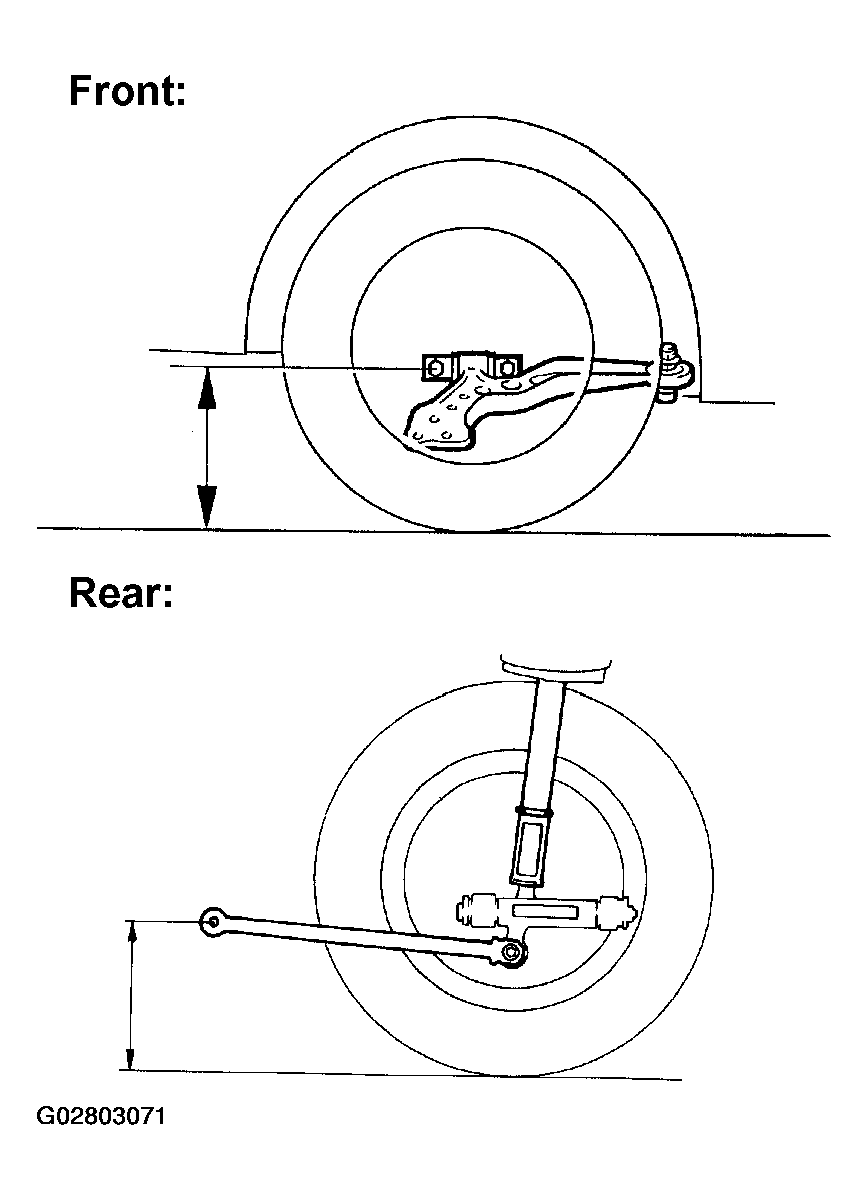

- MEASURE VEHICLE HEIGHT VEHICLE HEIGHT
Application Specification Front (1) 213 (8.39) mm (in.) Rear (2) 266 (10.47) mm (in.) (1) Front measuring point. Measure the distance from the ground to the center of the front side lower suspension arm mounting bolt. (2) Rear measuring point. Measure the distance from the ground to the center of the front side strut rod mounting bolt.
