Power Window Master Switch Circuit Test: RAV4

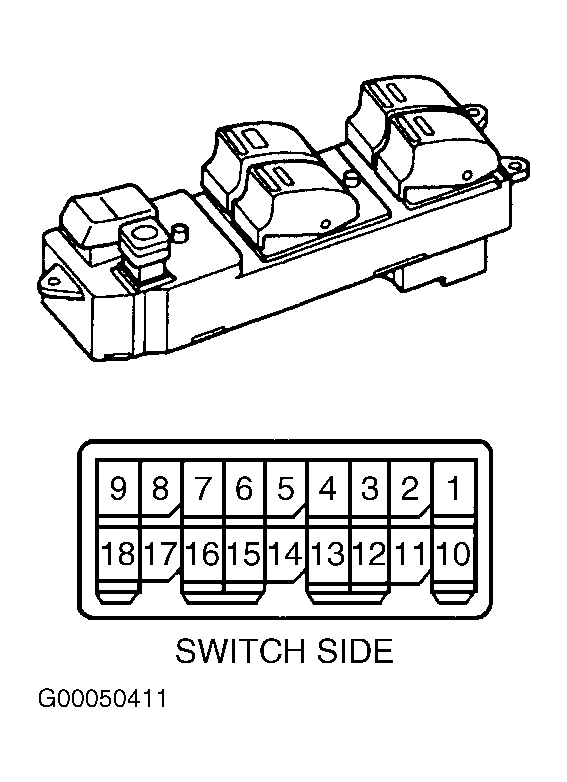

Disconnect 18-pin power window master switch connector. See Fig 1. Continuity should exist between all terminals listed in table. See POWER WINDOW MASTER SWITCH CIRCUIT TEST (RAV4) table. If continuity is not as specified, replace master switch. See POWER WINDOW SWITCH under REMOVAL & INSTALLATION.
| Application & Switch Position | Terminals No. | ||
|---|---|---|---|
| Driver's Switch | |||
| Locked & Unlocked | |||
| UP | 4 & 7; 1, 3 & 9 | ||
| OFF | 1, 3 & 4; 1, 3, & 9 | ||
| DOWN | 3 & 4; 5 & 6 | ||
| Front Passenger's Switch | |||
| Locked | |||
| UP | 6 & 13 | ||
| OFF | 13 & 15 | ||
| DOWN | 6 & 15 | ||
| Unlocked | |||
| UP | 6 & 13; 1, 3 & 15 | ||
| OFF | 1, 3 & 13; 1, 3 & 15 | ||
| DOWN | 6 & 15; 1, 3 & 13 | ||
| Left Rear Switch | |||
| Locked | |||
| UP | 6 & 12 | ||
| OFF | 10 & 12 | ||
| DOWN | 6 & 10 | ||
| Unlocked | |||
| UP | 6 & 12; 1, 3 & 10 | ||
| OFF | 1, 3 & 12; 1, 3 & 10 | ||
| DOWN | 6 & 10; 1, 3 & 12 | ||
| Right Rear Switch | |||
| Locked | |||
| UP | 6 &18 | ||
| OFF | 16 & 18 | ||
| DOWN | 6 & 16 | ||
| Unlocked | |||
| UP | 6 & 18; 1, 3 & 16 | ||
| OFF | 1, 3 & 18; 1, 3 & 16 | ||
| DOWN | 6 & 16; 1, 3 & 18 | ||
