Power Window Regulator Switch: Highlander

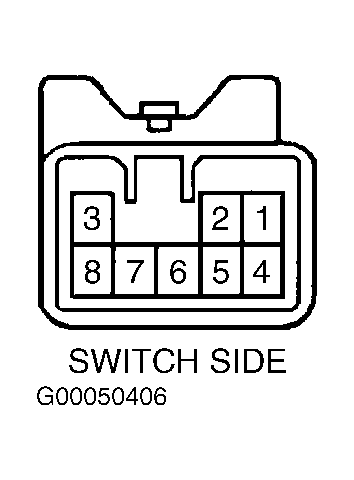

Disconnect power regulator switch electrical connector. Connect positive battery lead to connector terminal No. 8, and negative battery lead to connector terminal No. 1. See Fig 1. With switch in UP position, continuity should exist between connector terminals No. 3 and 7, and between connect terminals No. 1 and 6. With switch in DOWN position, continuity should exist between connector terminals No. 1 and 3, and between connector terminals No. 6 and 7. If continuity is not as specified, replace power window regulator switch.
