2001 Toyota 4Runner BaseFACTORY OEM SERVICE PROCEDURE
Back Door Control Switch: 4Runner

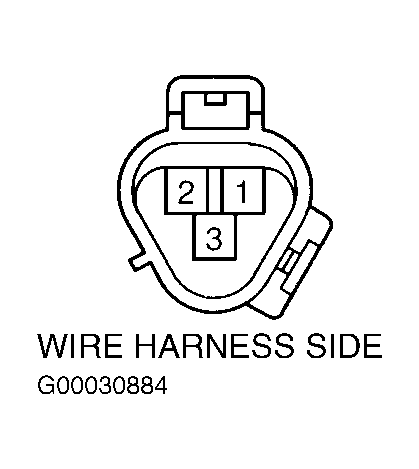

Test 3-pin back door control switch for continuity. See BACK DOOR CONTROL SWITCH CONTINUITY (4RUNNER) table. See Fig 1. If results are not as specified, replace switch.
BACK DOOR CONTROL SWITCH CONTINUITY (4RUNNER)
| Switch Position | Test Between Connector Terminals No. | Result |
|---|---|---|
| UP | 2 & 3 | Continuity |
| OFF | ..... | No Continuity |
| DOWN | 1 & 3 | Continuity |
