2000 Toyota Sienna LE V6-3.0L (1MZ-FE)FACTORY OEM SERVICE PROCEDURE
Connector Locations

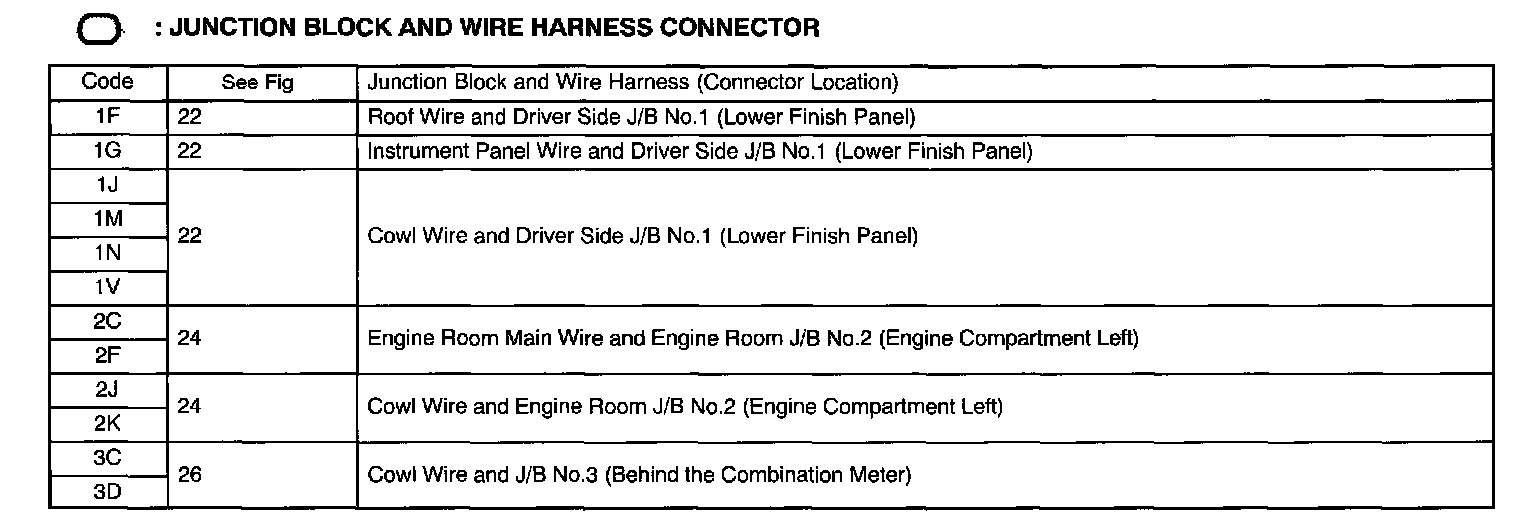

JUNCTION BLOCK AND WIRE HARNESS CONNECTOR

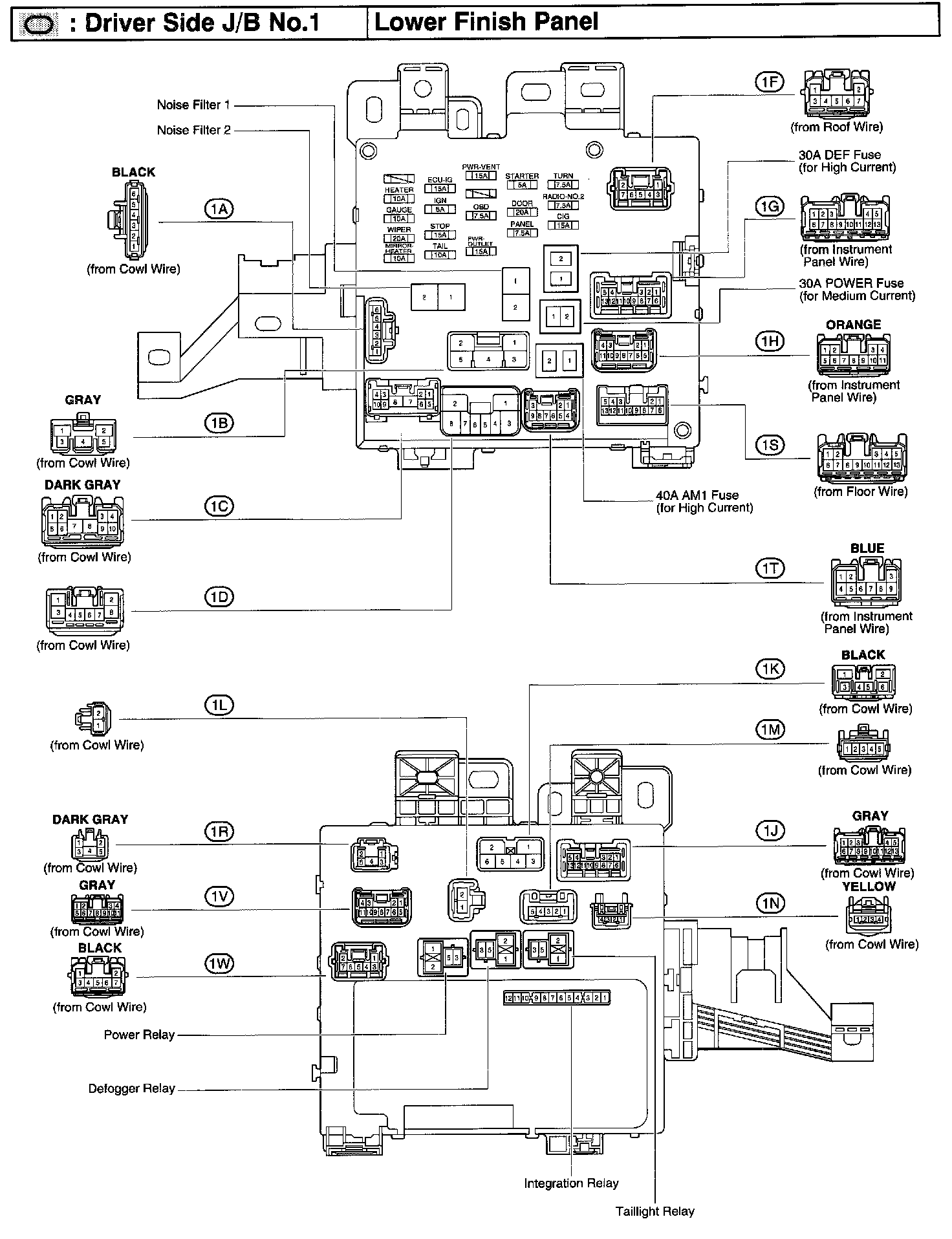

Driver Side J/B No. 1:
FIG 22

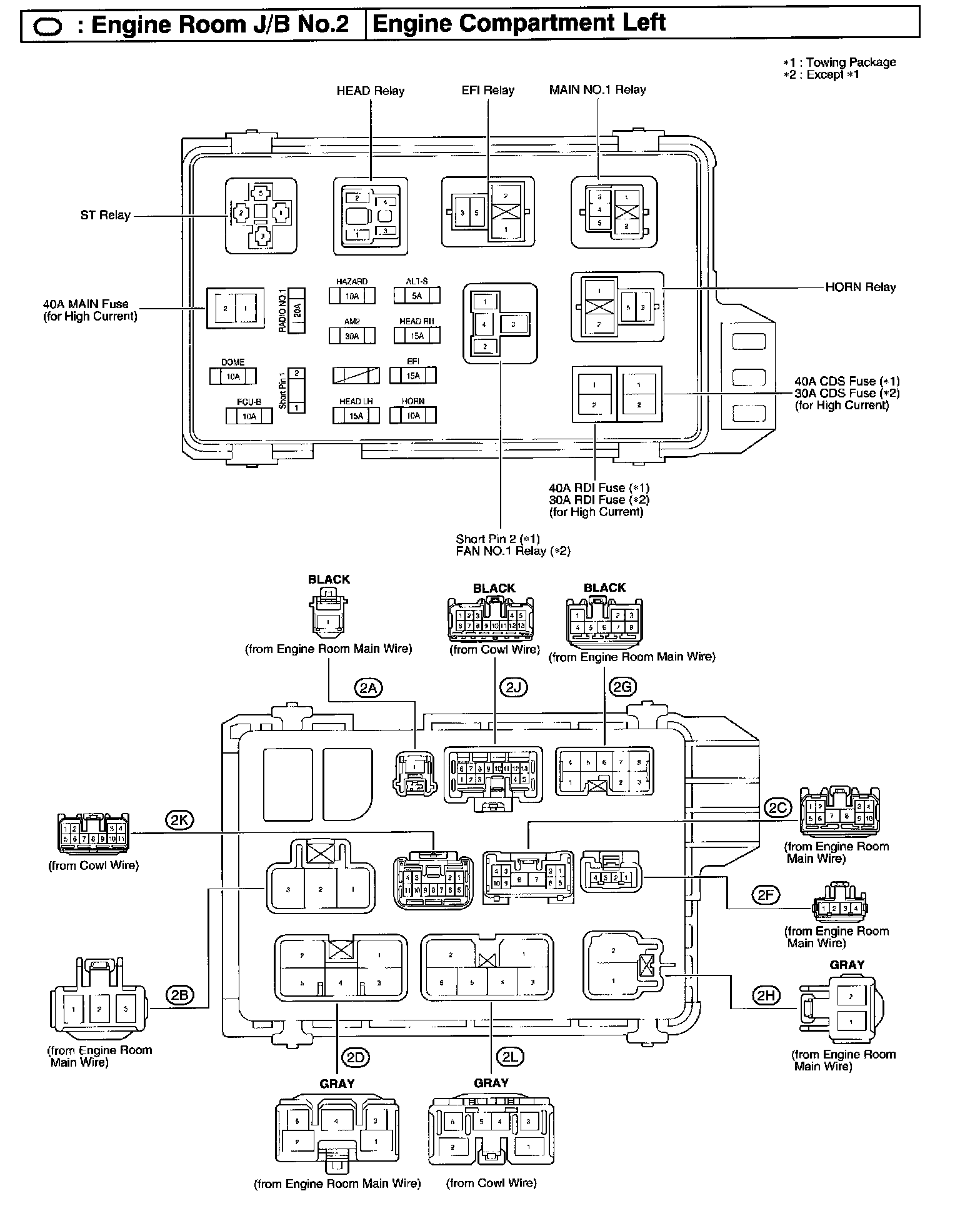

Engine Room J/B No. 2:
FIG 24
J/B No.3:
FIG 26
