2000 Toyota RAV4 Base, AWD, AutomaticFACTORY OEM SERVICE PROCEDURE
Electrical Component Locator: Splices
SPLICES
| Component | Component Location |
|---|---|
| B1 (2-Door) | In body harness, at left side of windshield header. |
| B1 (4-Door) | In body harness, at top of left "A" pillar. |
| B2 | In body harness, at left side of back door. |

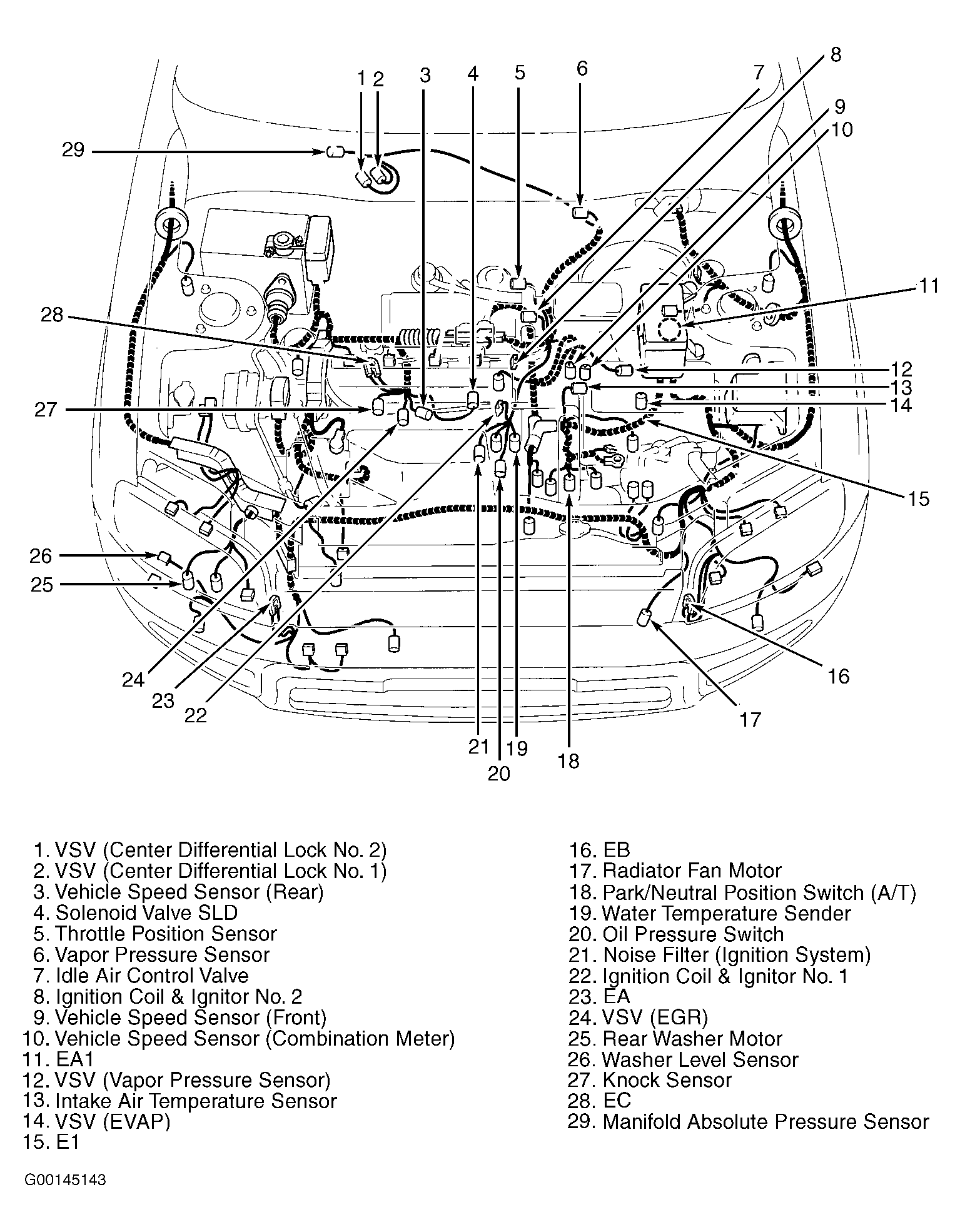

| E1 | In engine compartment harness, behind left headlight. See Figure. |
| I1 | In dash harness, behind lower right side of dash. |
| I2 | In dash harness, behind right side of dash. |
