2000 Toyota Land CruiserFACTORY OEM SERVICE PROCEDURE

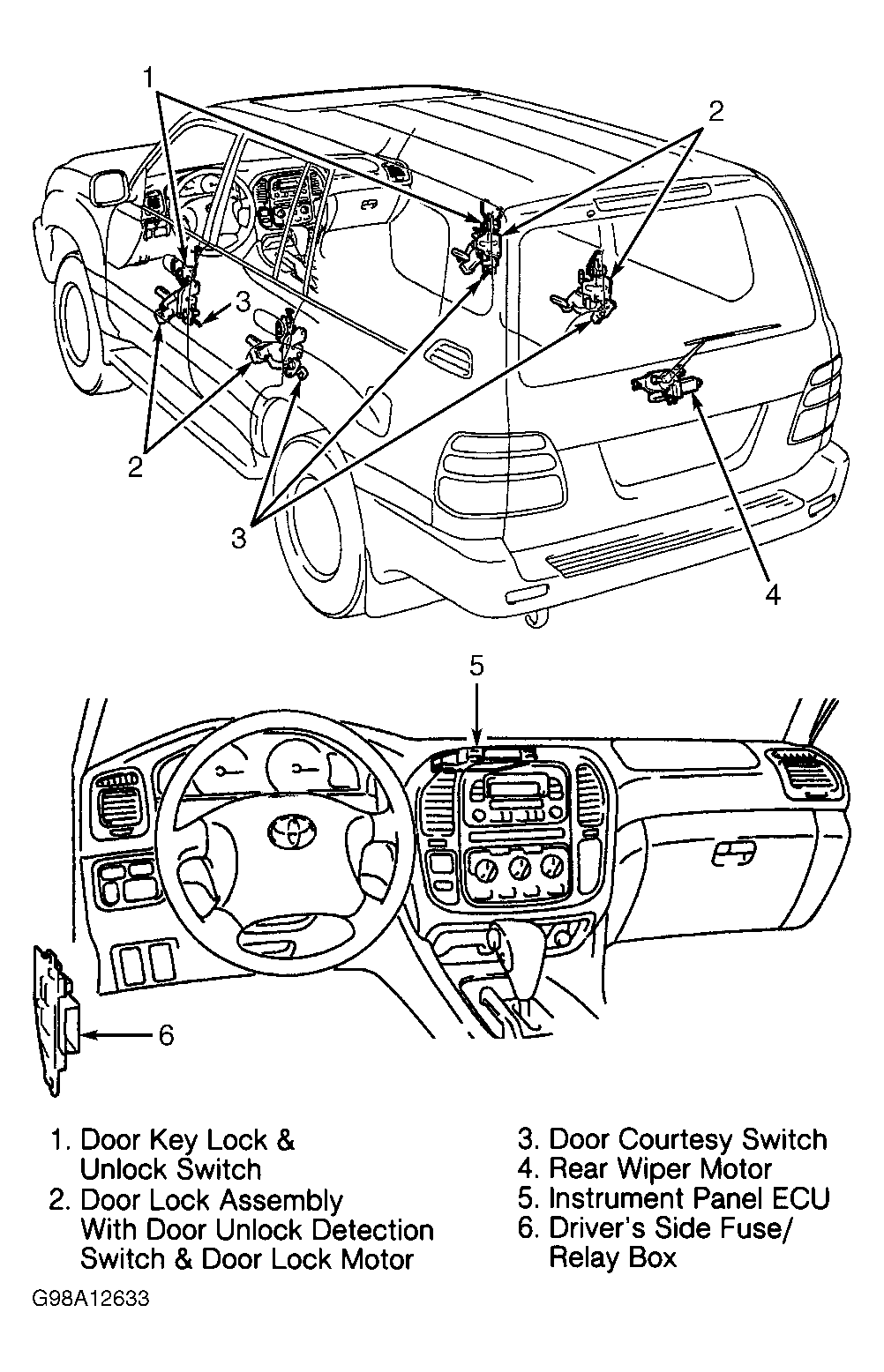

Component Locations
COMPONENT LOCATIONS
| Component | (1) Location | ||
|---|---|---|---|
| Body Electronic Control Unit (ECU) | Behind Center Of Instrument Panel | ||
| Engine Room Junction Block | Left Side Of Engine Compartment | ||
| Headlight Relay | In Engine Room Junction Block | ||
| Key Unlock Warning Switch | On Ignition Lock Cylinder Housing | ||
| Left Junction Block (Driver's Side Fuse/Relay Box) | Behind Left Kick Panel | ||
| Park/Neutral Position (PNP) Switch (A/T Indicator Light Switch) | On Right Side Of Transmission | ||
| Power Main Relay | In Left Junction Block | ||
| Stoplight Switch | Top Of Brake Pedal | ||
| Taillight Relay | In Left Junction Block | ||
|
|||
