Power & Ground Circuits

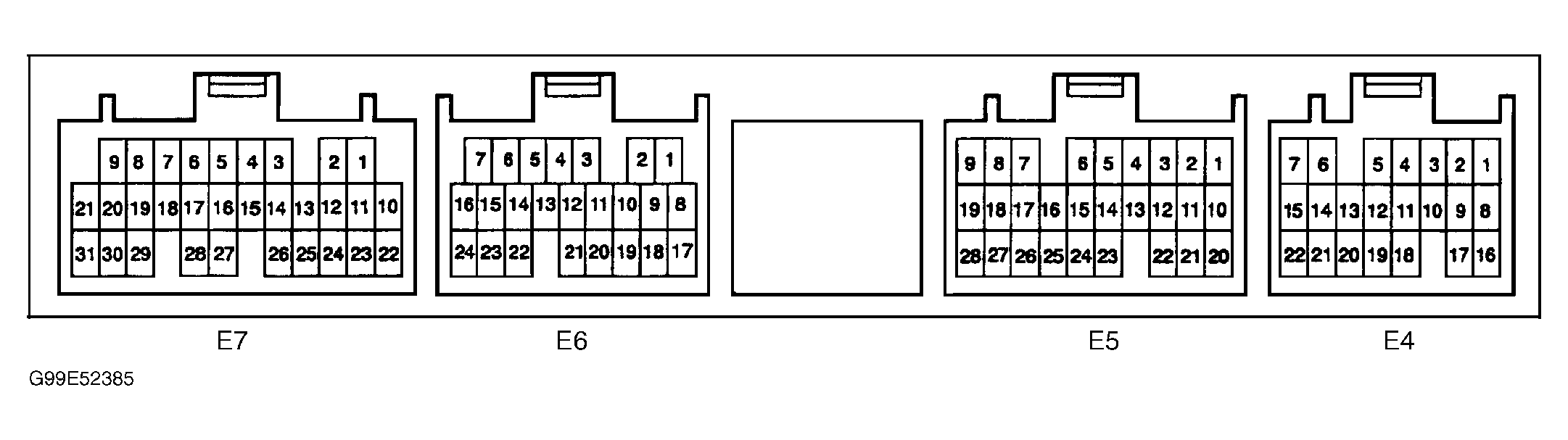

For testing of Engine Control Module (ECM) power and ground circuits, see ENGINE CONTROL MODULE (ECM) POWER SOURCE CIRCUIT . Also see PIN VOLTAGE CHARTS article. For illustration of ECM location, see THEORY & OPERATION article. Use illustration for identification of ECM electrical connector terminals. See Fig 1-Fig 10 .
