1998 Toyota Tercel AutomaticFACTORY OEM SERVICE PROCEDURE
Camshaft Position Sensor Resistance: Tercel

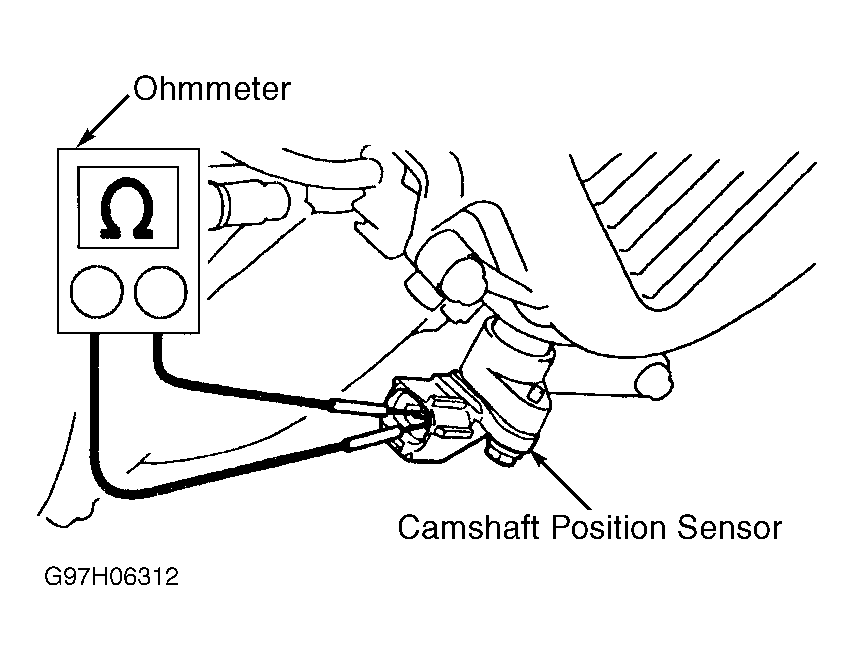

- Disconnect electrical connector from camshaft position sensor. Camshaft position sensor is located on end of cylinder head, just above the flywheel. See Fig 1-32. Using ohmmeter, check resistance between electrical terminals on camshaft position sensor.
- Ensure camshaft position sensor resistance is within specification. See CAMSHAFT POSITION SENSOR RESISTANCE table. Replace camshaft position sensor if resistance is not within specification. See REMOVE/INSTALL/OVERHAUL article. Reinstall electrical connector on camshaft position sensor.
CAMSHAFT POSITION SENSOR RESISTANCE
| Application | Ohms | |||||
|---|---|---|---|---|---|---|
| Camry, Corolla, RAV4, Tacoma, | ||||||
| Cold (1) | 835-1400 | |||||
| Hot (2) | 1060-1645 | |||||
| Tercel | ||||||
| Cold (1) | 985-1600 | |||||
| Hot (2) | 1265-1890 | |||||
| T100 & 4Runner | ||||||
| Cold (1) | 835-1400 | |||||
| Hot (2) | 1060-1645 | |||||
|
||||||
