Pressure Switch

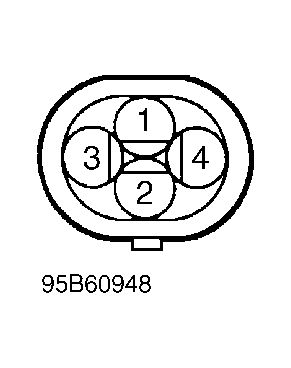

Install manifold gauge set. Pressure switch is located on liquid line, at receiver-drier. Disconnect pressure switch connector. Run engine at approximately 1500 RPM. Using an ohmmeter, check for continuity between pressure switch terminals. See Fig 1. See PRESSURE SWITCH TEST table. If continuity is not as specified, replace pressure switch.
| Line Pressure psi (kg/cm2 ) | Switch Operation | Continuity | ||||
|---|---|---|---|---|---|---|
| Decreasing To 28 (2.0) (1) | On | Yes | ||||
| Increasing To 33 (2.3) (1) | Off | No | ||||
| Decreasing To 370 (26.0) (1) | Off | No | ||||
| Increasing To 455 (32.0) (1) | On | Yes | ||||
| Greater Than 199 (14.0) (2) | Off | No | ||||
| Less Than 199 (14.0) (2) | On | Yes | ||||
|
||||||
