1997 Toyota Tercel 4D Sedan, StandardFACTORY OEM SERVICE PROCEDURE
EFI Main Relay
NOTE:
EFI main relay may also be referred to as EFI relay.
- Ensure ignition is off. Remove EFI main relay. See EFI MAIN RELAY LOCATION table.NOTE: The EFI main relay may also be identified using appropriate illustration in THEORY/OPERATION article.EFI MAIN RELAY LOCATION

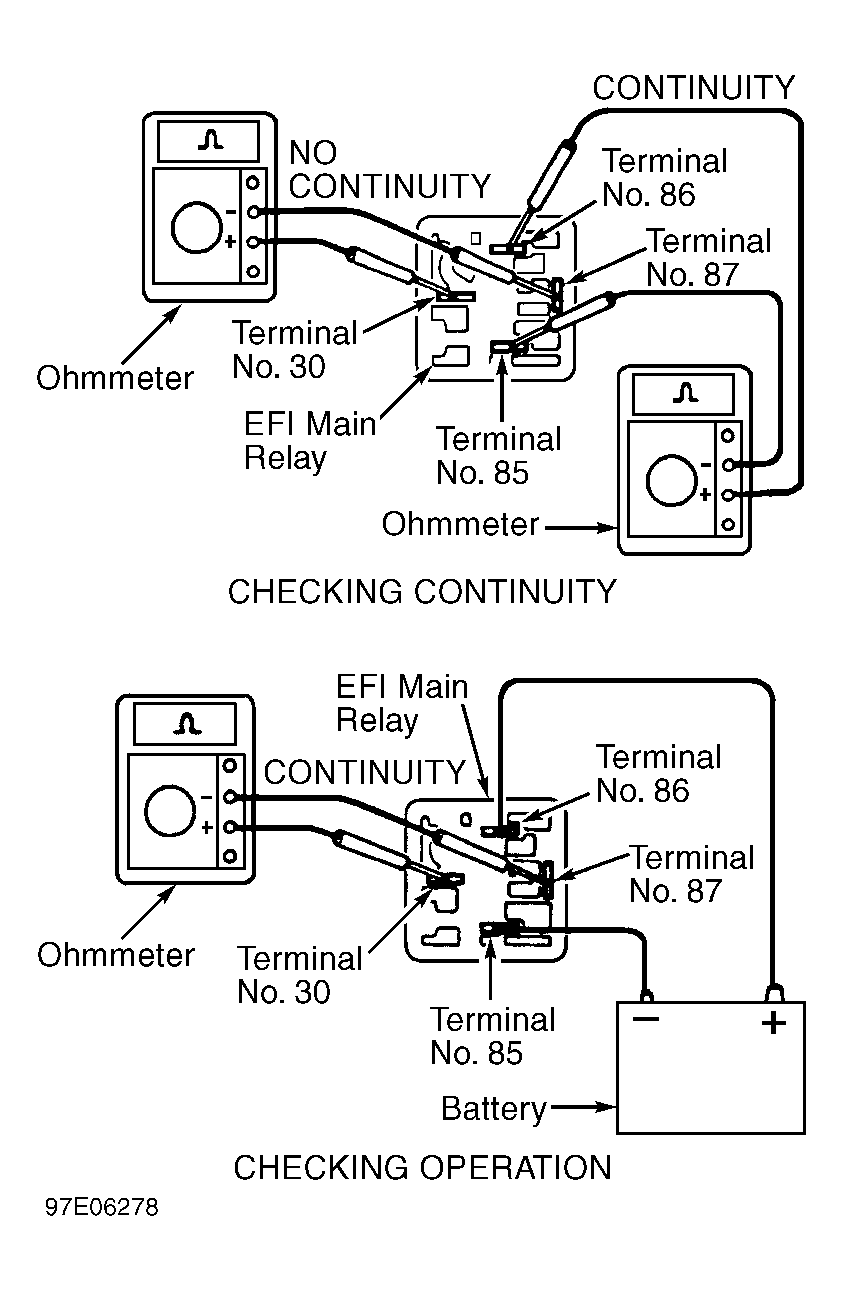

Application Location Tercel In Fuse/Relay Box Near Driver's Side Front Corner Of Engine Compartment, Just In Front Of Strut Tower - To check EFI main relay continuity, use ohmmeter to check continuity between specified terminals. See Fig 1.
- To check EFI main relay operation, apply battery voltage and ground to relay and use ohmmeter to check continuity between specified terminals. See Fig 1. Replace EFI main relay if defective.
