1997 Toyota Tercel 4D Sedan, StandardFACTORY OEM SERVICE PROCEDURE
Circuit Opening Relay

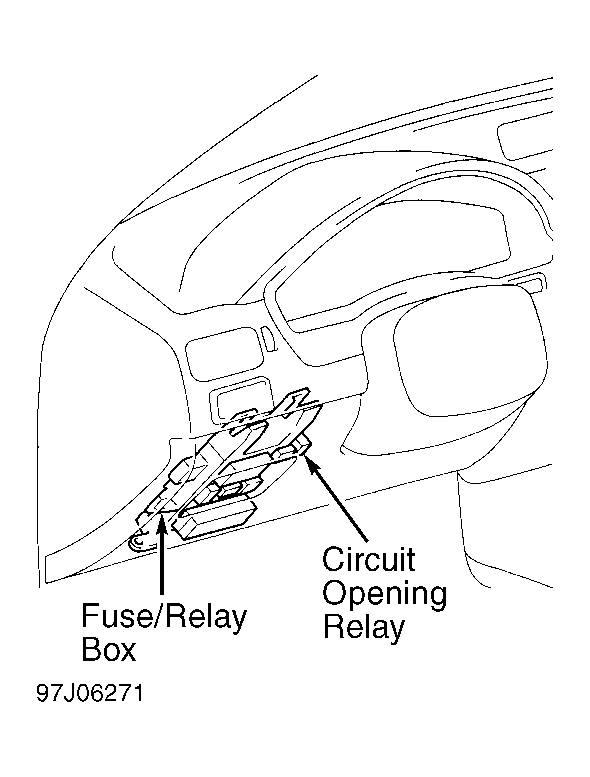

- Ensure ignition is off. Remove circuit opening relay. See CIRCUIT OPENING RELAY LOCATION table. See Fig 1.CIRCUIT OPENING RELAY LOCATION
Application Relay Location Tercel Near Top Right Corner Of Fuse/Relay Box Behind Driver's Side Lower Instrument Panel Cover, Near Steering Column - To check circuit opening relay continuity, use ohmmeter to check continuity between specified terminals. See Fig 2.
- To check circuit opening relay operation, apply battery voltage and ground to relay and use ohmmeter to check continuity between specified terminals. See Fig 2. Replace circuit opening relay if defective.
