1997 Toyota Avalon XLSFACTORY OEM SERVICE PROCEDURE
Throttle Opener
- Start and warm engine to normal operating temperature. Ensure idle speed is within specification. See IDLE SPEED & MIXTURE in ADJUSTMENTS article.

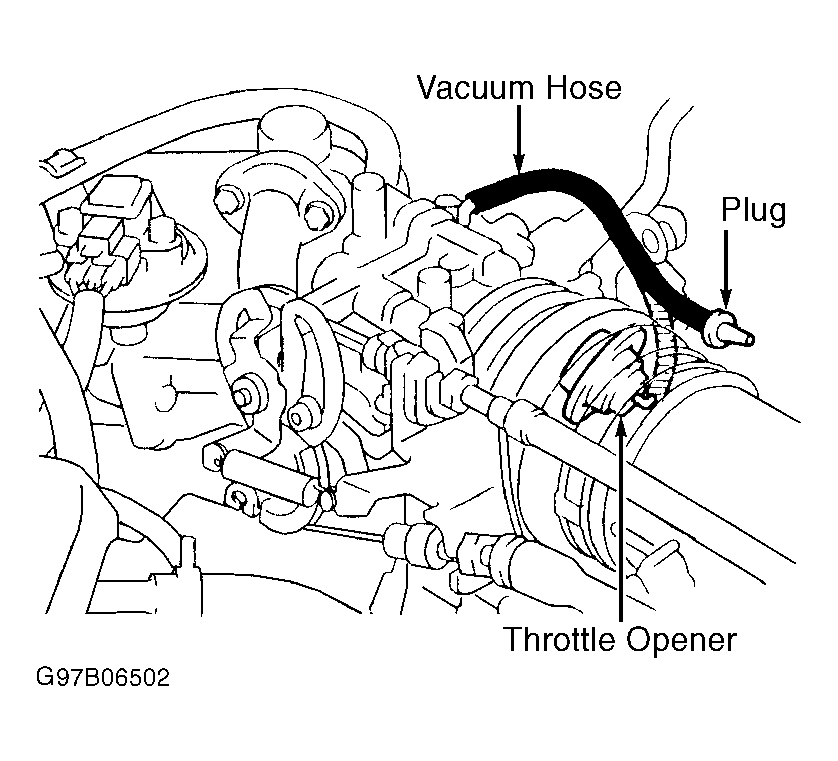

- Shut engine off. Disconnect and plug vacuum hose at throttle opener. See Fig 1. Start engine and note engine speed. Engine speed should be 900-1950 RPM.
- If engine speed is not within specification, replace throttle body. Shut engine off. Reinstall vacuum hose on throttle opener. Start engine and ensure engine returns to proper idle speed.
