1997 Toyota Avalon XLSFACTORY OEM SERVICE PROCEDURE
EFI Main Relay
NOTE:
EFI main relay may also be referred to as EFI relay.
- Ensure ignition is off. Remove EFI main relay from relay box at driver's side front corner of engine compartment, near battery.

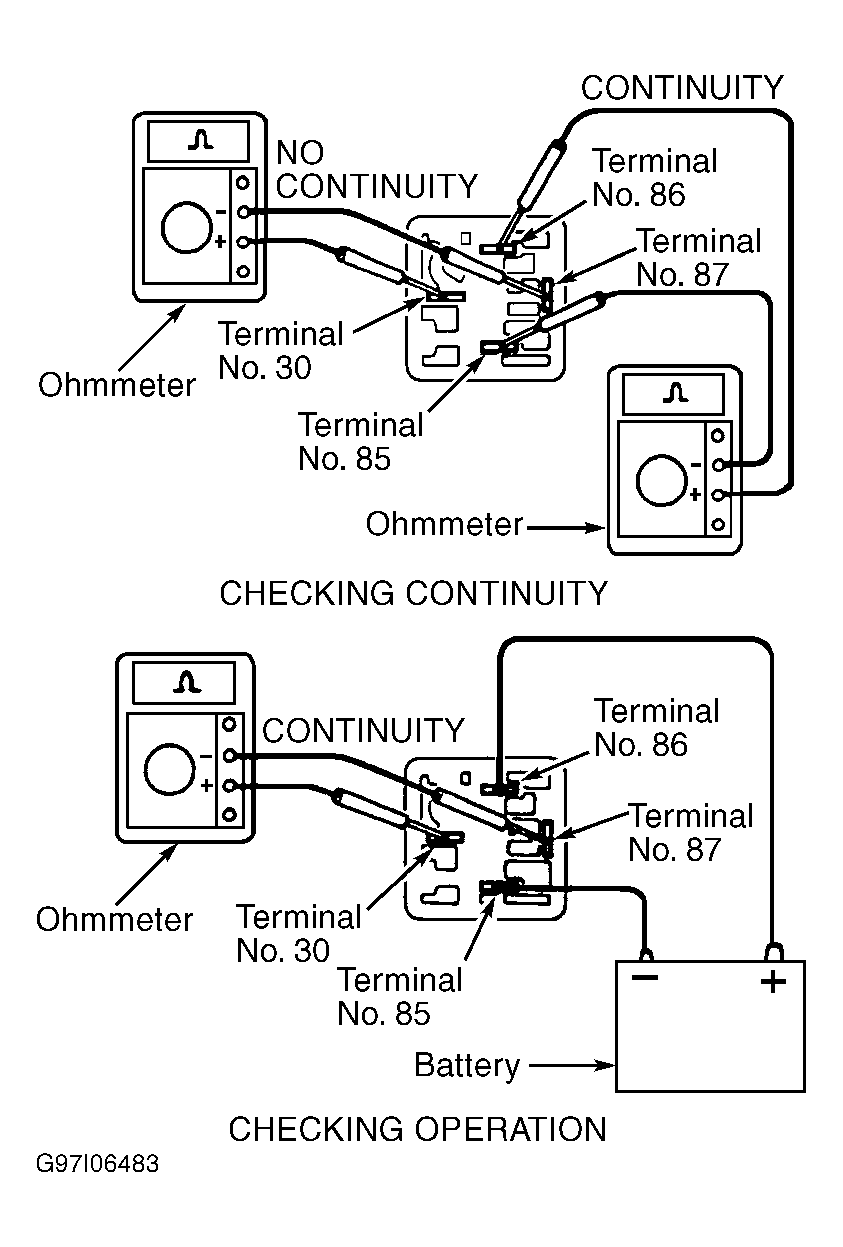

- To test EFI main relay continuity, use ohmmeter to check continuity between specified terminals. See Fig 1 and Fig 2.
- To test EFI main relay operation, apply battery voltage and ground to relay and use ohmmeter to check continuity between specified terminals. See Fig 1 and Fig 2. Replace EFI main relay if defective.
