1997 Toyota Avalon XLFACTORY OEM SERVICE PROCEDURE
Camshaft Position Sensor

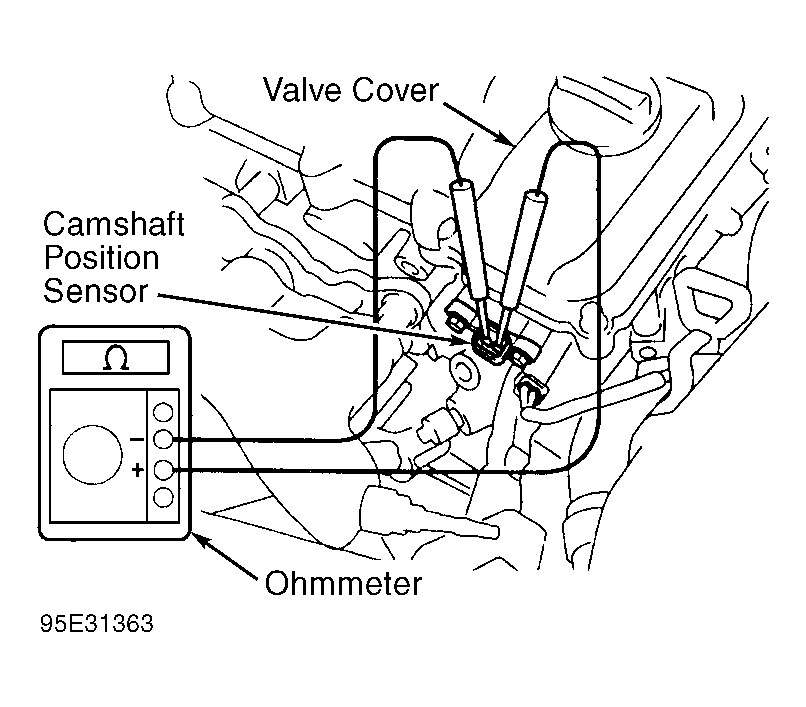

- Disconnect electrical connector from camshaft position sensor. Camshaft position sensor is located at flywheel end of driver's side (front) cylinder head, just below valve cover. See Fig 1. Using ohmmeter, check resistance between electrical terminals on camshaft position sensor.
- Replace camshaft position sensor if resistance is not within specification. See CAMSHAFT POSITION SENSOR RESISTANCE table. Reinstall electrical connector on camshaft position sensor.
CAMSHAFT POSITION SENSOR RESISTANCE
| Application | Ohms | |||||
|---|---|---|---|---|---|---|
| Nippondenso | ||||||
| Cold (1) | 835-1400 | |||||
| Hot (2) | 1060-1645 | |||||
| Wabash | ||||||
| Cold (1) | 1690-2560 | |||||
| Hot (2) | 2145-3010 | |||||
|
||||||
