Tire Pressure Monitoring Systems

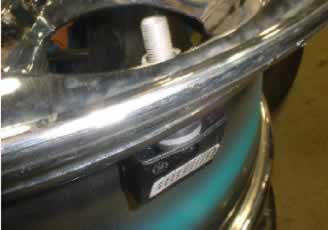

To avoid damaging sensors when mounting and demounting tires, it is beneficial to know where the sensors are located. Sensor assemblies are commonly attached to the valve stem, with the valve stem acting as an antenna to assist with transmitting RF signals. They may also be strapped to the drop center of the wheel. If this is the case, the sensor assembly should be located in-line with the valve stem.

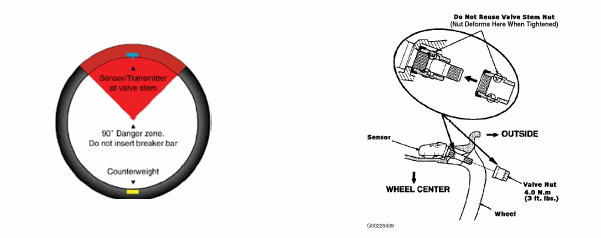

To avoid damaging sensors when demounting tires, do not break the bead within 45 of either side of sensor assembly locations. Be careful not to damage sensors when mounting tires as well. Sensors are not repairable and require replacement if damaged or when their battery is completely drained. It is recommended that the sensor be carefully "dropped into the tire" prior to demounting to avoid damage.
When reinstalling the sensor, it is suggested that the locknut, gasket and valve stem be replaced and torgued to the proper specification. It is also necessary to use the proper valve cap as it is also an integral part of the system.
It may be necessary to reprogram the TPMS when the tires are rotated, when a new sensor is installed, or after the vehicle loses power. This usually requires a scan tool and may involve the use of a special magnet. Refer to the vehicle service manual to properly reprogram the TPMS.
