1996 Toyota Tercel DX, 4D Sedan, AutomaticFACTORY OEM SERVICE PROCEDURE

Circuit Opening Relay

Ensure ignition is off. Remove circuit opening relay. See CIRCUIT OPENING RELAY LOCATION table.

NOTE: Circuit opening relay may also be identified using appropriate illustration in THEORY/OPERATION article and wire color. See appropriate wiring diagram in WIRING DIAGRAMS article.

CIRCUIT OPENING RELAY LOCATIONS

Application	Relay Location
Tercel	Near Top Right Corner Of Fuse/Relay Box behind Driver's Side Lower Instrument Panel Cover, Near Steering Column

To test circuit opening relay continuity, using ohmmeter, check continuity between specified terminals. See Fig 1 and Fig 2.
To test circuit opening relay operation, apply battery voltage and ground to relay and use ohmmeter to check continuity between specified terminals. See Fig 1 and Fig 2. Replace circuit opening relay if defective.

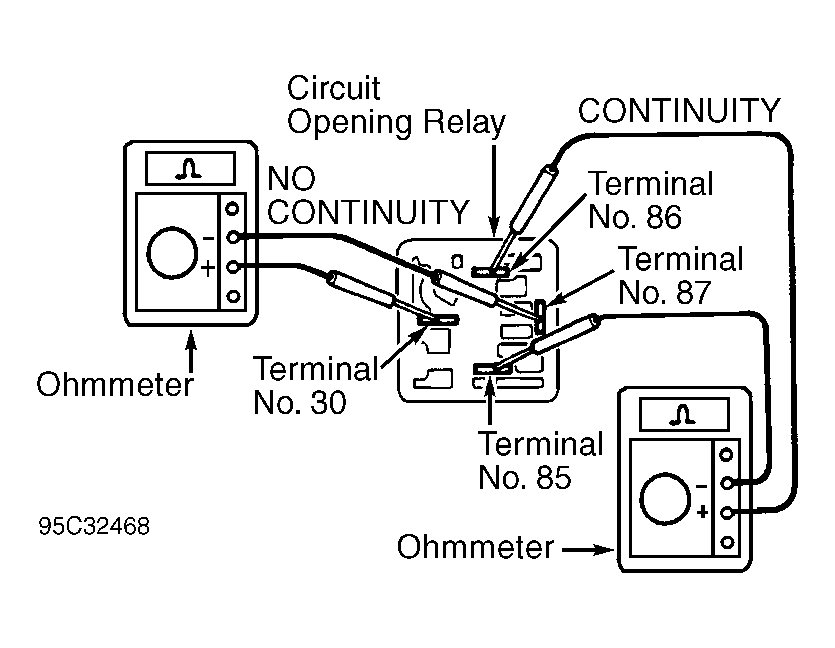

Fig 1: Testing Circuit Opening Relay - Checking Continuity

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
