Remove necessary components and disconnect electrical connector from ignition coil. Disconnect spark plug wire from ignition coil.
Using ohmmeter, check ignition coil primary resistance between ignition coil positive (+) and negative (-) terminals. These are the terminals that electrical connector was installed on. See Fig 1 and Fig 2. Replace ignition coil if primary resistance is not within specification. See IGNITION COIL RESISTANCE table.
Using ohmmeter, check ignition coil secondary resistance. See Fig 1 and Fig 2. Replace ignition coil if secondary resistance is not within specification. See IGNITION COIL RESISTANCE table. Reinstall connector on ignition coil.

IGNITION COIL RESISTANCE

Application

Primary

Secondary

Cold ⁽¹⁾

.67-1.05

9300-16,000

Hot ⁽²⁾

.85-1.23

11,700-18,800

⁽¹⁾	Cold is with temperature of 14-122°F (-10-50°C).

⁽²⁾	Hot is with temperature of 122-212°F (50-100°C).

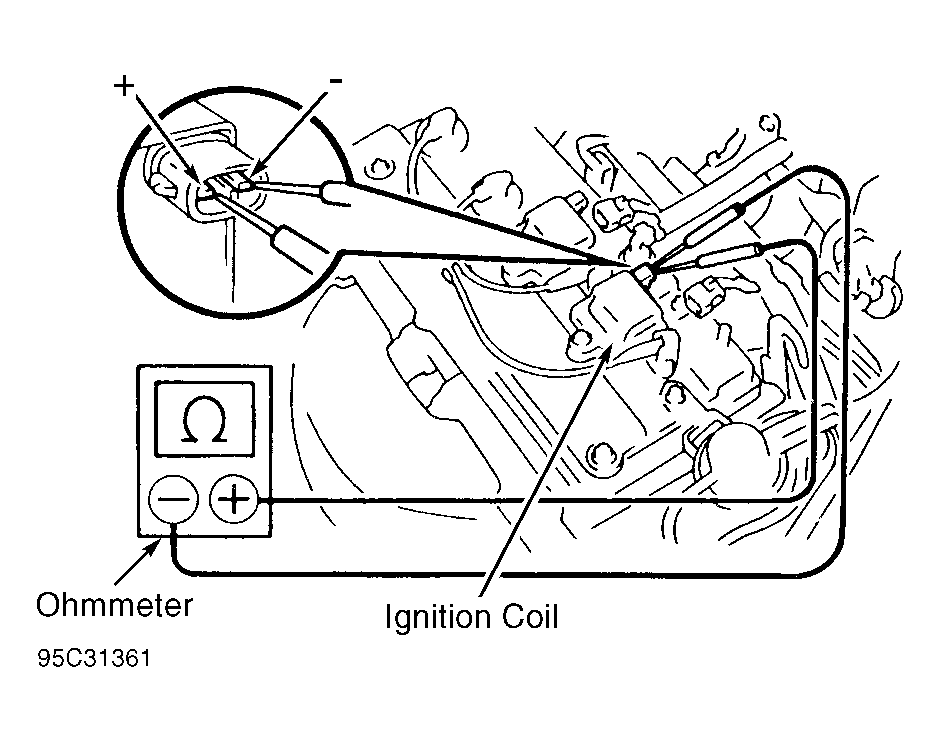

Fig 1: Measuring Ignition Coil Primary Resistance
