Power Window Switch Continuity Test (Driver's Side Switch)

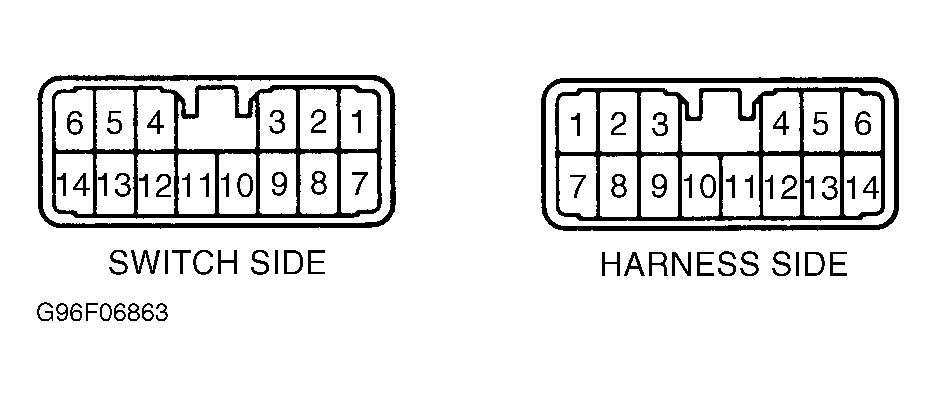

Using an ohmmeter, check continuity between specified terminals with driver's side power window switch in specified position. See POWER WINDOW SWITCH CONTINUITY TEST (DRIVER'S SIDE) table. See Fig 1. If continuity does not exist at specified terminals, replace power window switch.
| Application & Position | (1) Terminal No. | ||||
|---|---|---|---|---|---|
| Driver's Side Switch (Locked & Unlocked) | |||||
| UP | 1, 2 & 13; 6, 7 & 8 | ||||
| OFF | 1, 2, 6 & 13 | ||||
| DOWN | 1, 2 & 6; 7, 8 & 13 | ||||
| Passenger's Side Switch | |||||
| Locked | |||||
| UP | 1, 2 & 5; 7, 8 & 12 | ||||
| OFF | 1, 2, 5 & 12 | ||||
| DOWN | 1, 2 & 12; 5, 7 & 8 | ||||
| Unlocked | |||||
| UP | 7, 8 & 12 | ||||
| OFF | 5 & 12 | ||||
| DOWN | 5, 7 & 8 | ||||
| Left Rear Switch | |||||
| Locked | |||||
| UP | 7, 8 & 10 | ||||
| OFF | 1, 2 & 9 | ||||
| DOWN | 1, 2, 9 & 10 | ||||
| Unlocked | |||||
| UP | 7, 8 & 10 | ||||
| OFF | 9 & 10 | ||||
| DOWN | 7, 8 & 9 | ||||
| Right Rear Switch | |||||
| Locked | |||||
| UP | 1, 2 & 14; 7, 8 & 11 | ||||
| OFF | 1, 2, 11 & 14 | ||||
| DOWN | 1, 2 & 11; 7, 8 & 14 | ||||
| Unlocked | |||||
| UP | 7, 8 & 11 | ||||
| OFF | 11 & 14 | ||||
| DOWN | 7, 8 & 14 | ||||
|
|||||
