Wiper Switch Test

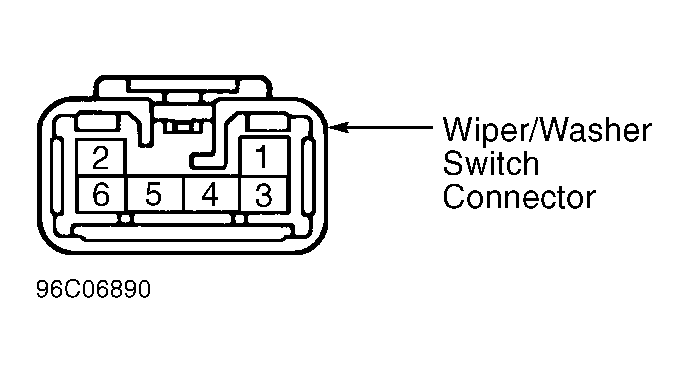

With wiper switch in specified position, ensure continuity exists between terminals listed. See WIPER SWITCH CONTINUITY TEST table. See Fig 1- Fig 2 . Replace wiper switch assembly if continuity is not as specified.
| Switch Position | (1) Terminals | |||
|---|---|---|---|---|
| Tercel (Canada) | ||||
| Off | 1 & 6 | |||
| Intermittent | 1 & 6 | |||
| Mist | 3 & 4 | |||
| Low | 1 & 5 | |||
| High | 2 & 5 | |||
| Tercel (USA) | ||||
| Off | 7 & 16 | |||
| Intermittent | 7 & 16 | |||
| Low | 7 & 17 | |||
| High | 8 & 17 | |||
|
||||
