1995 Toyota Tercel Base, AutomaticFACTORY OEM SERVICE PROCEDURE
EFI Main Relay
- Ensure ignition is off. Remove EFI main relay. See EFI MAIN RELAY LOCATION table.NOTE: The EFI main relay may also be identified using appropriate illustration in the THEORY/OPERATION article or wire color. See wiring diagram in the WIRING DIAGRAMS article.EFI MAIN RELAY LOCATION

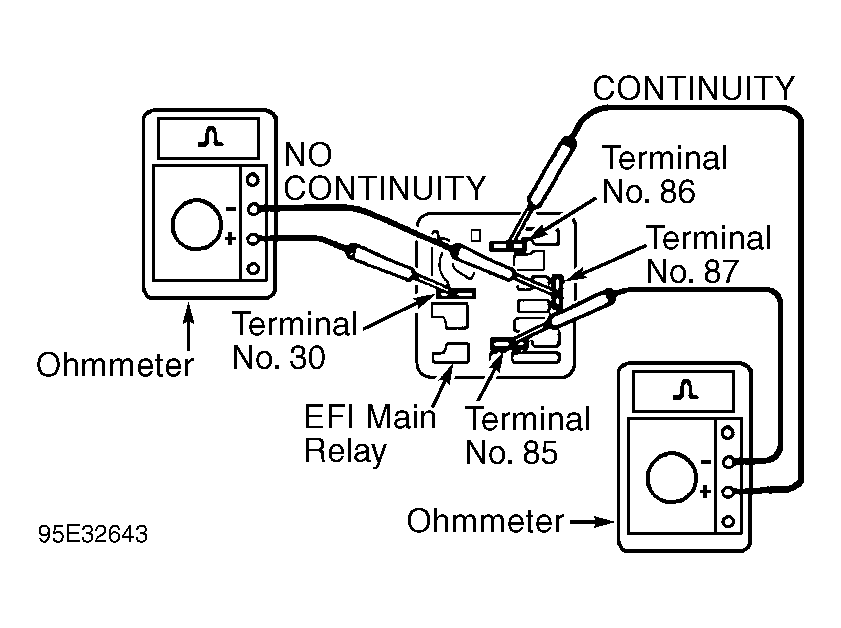

Application Location Tercel Fuse/Relay Box Near Driver's Side Front Corner Of Engine Compartment - Using ohmmeter, check continuity between specified terminals. See Fig 1.
- Check EFI main relay operation by applying battery voltage and ground and checking continuity between specified terminals. See Fig 2. Replace EFI main relay if defective.
