1995 Toyota Tercel Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Throttle Position Sensor

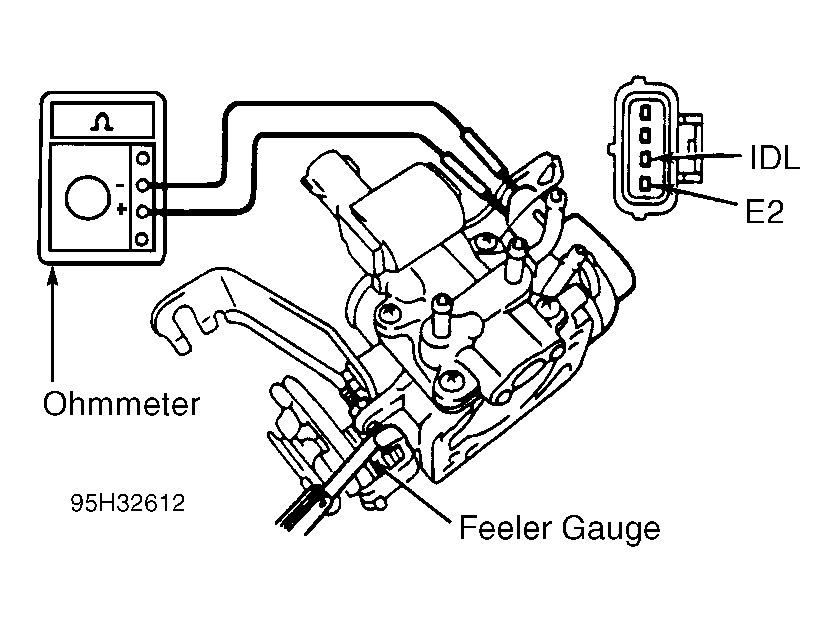

- Disconnect electrical connector from Throttle Position Sensor (TPS). Loosen TPS mounting screws. Connect ohmmeter between terminals IDL and E2. See Fig 1.
- Apply vacuum to throttle opener (if equipped). To set initial clearance, insert proper thickness feeler gauge between throttle stop screw and throttle lever. See the 4-CYLINDER THROTTLE POSITION SENSOR ADJUSTMENT table.
- With ohmmeter showing no continuity, rotate TPS clockwise until continuity exists. Tighten TPS mounting screws. Using specified feeler gauge, recheck adjusted clearance. Disconnect ohmmeter. Install electrical connector on TPS.
4-CYLINDER THROTTLE POSITION SENSOR ADJUSTMENT (1)
| Application Type | Initial Clearance | Adjusted Clearance | Ohmmeter Reading | ||
|---|---|---|---|---|---|
| Tercel | .024 (.61) | .020 (.51) | Continuity | ||
| " | " | .028 (.71) | No Continuity | ||
|
|||||
