1994 Toyota T100 BaseFACTORY OEM SERVICE PROCEDURE
Park/Neutral Switch: Notes
NOTE:
If vehicle will not start with shift lever in Park/Neutral position, verify correct park/neutral switch adjustment. If park/neutral switch is correctly adjusted, verify switch continuity.

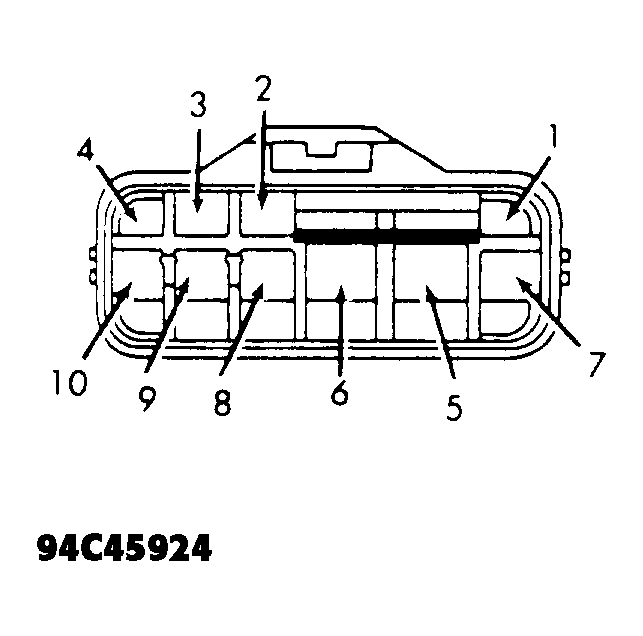

PARK/NEUTRAL SWITCH CONTINUITY SPECIFICATIONS
| Gearshift Position | Continuity Between Terminals |
|---|---|
| Park | 5 & 6, 4 & 7 |
| Reverse | 4 & 8 |
| Neutral | 5 & 6, 4 & 10 |
| Drive | 4 & 9 |
| 2 | 4 & 2 |
| Low | 4 & 3 |
