1994 Toyota Land CruiserFACTORY OEM SERVICE PROCEDURE
Fuel Pump Relay

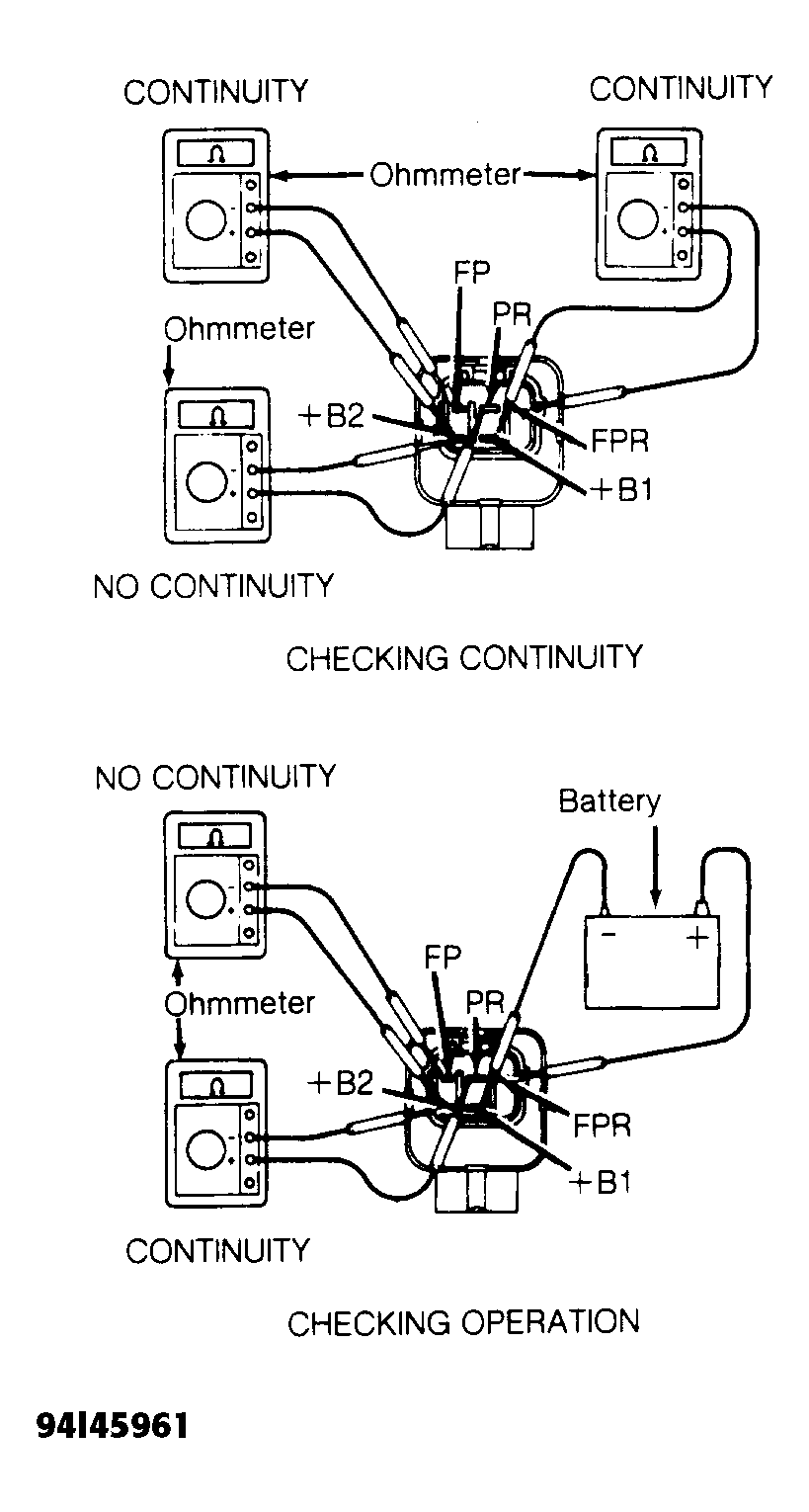

- Ensure ignition is off. Remove fuel pump relay. See FUEL PUMP RELAY LOCATION table. Using ohmmeter, check continuity between specified terminals. See Fig 1.
- Check fuel pump relay operation by applying battery voltage and ground and checking continuity between specified terminals. See Fig 1. Replace fuel pump relay if defective.
NOTE:
Fuel pump relay may be identified using appropriate illustration in THEORY/OPERATION
article or wire color. See appropriate wiring diagram in WIRING DIAGRAMS
article.
FUEL PUMP RELAY LOCATION
| Application | Location |
|---|---|
| Land Cruiser | Driver Side Of Engine Bay On Fender, Near Fenderwell & Contains Black, 4-Wire Connector |
