1994 Toyota Land CruiserFACTORY OEM SERVICE PROCEDURE
Circuit Opening Relay

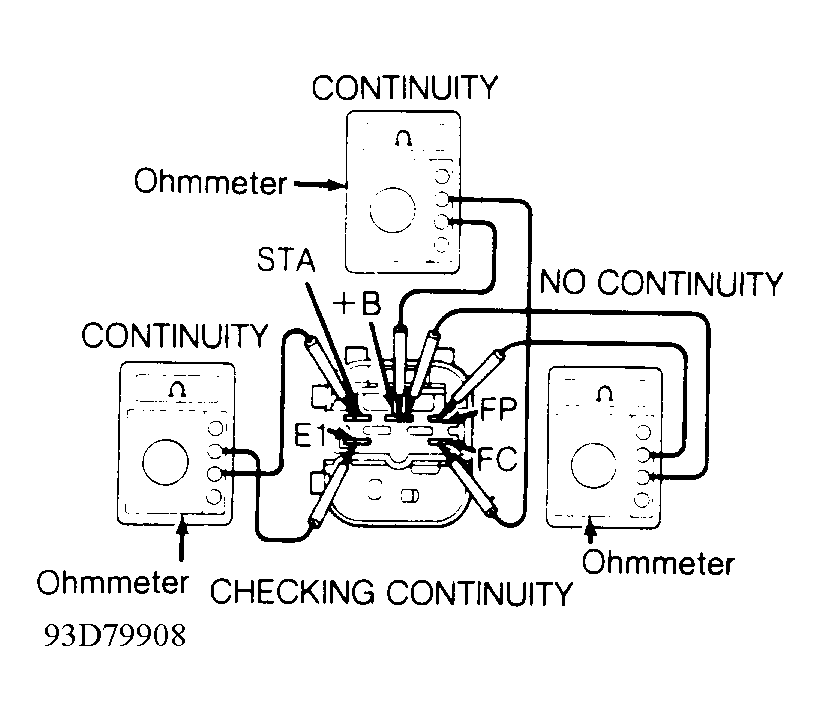

- Ensure ignition is off. Remove circuit opening relay. See CIRCUIT OPENING RELAY LOCATION table. Using ohmmeter, check continuity between specified terminals. See Fig 1, Fig 2 and Fig 3.
- Check circuit opening relay operation by applying battery voltage and ground and checking continuity between specified terminals. See Fig 1, Fig 2 and Fig 3. Replace circuit opening relay if defective.
NOTE:
Circuit opening relay may also be identified using appropriate illustration in THEORY/OPERATION
article or wire color. See appropriate wiring diagram in WIRING DIAGRAMS
article.
CIRCUIT OPENING RELAY LOCATION
| Application | Location |
|---|---|
| Land Cruiser | Behind Driver's Side Kick Panel |
