1993 Toyota Tercel BaseFACTORY OEM SERVICE PROCEDURE
Air Temperature Sensor
- Ensure ignition is off. Disconnect electrical connector from air temperature sensor. Air temperature sensor is located in air intake, near air filter.
- Remove air temperature sensor. Place threaded end of air temperature sensor and thermometer in container of water. Attach ohmmeter between air temperature sensor electrical terminals.

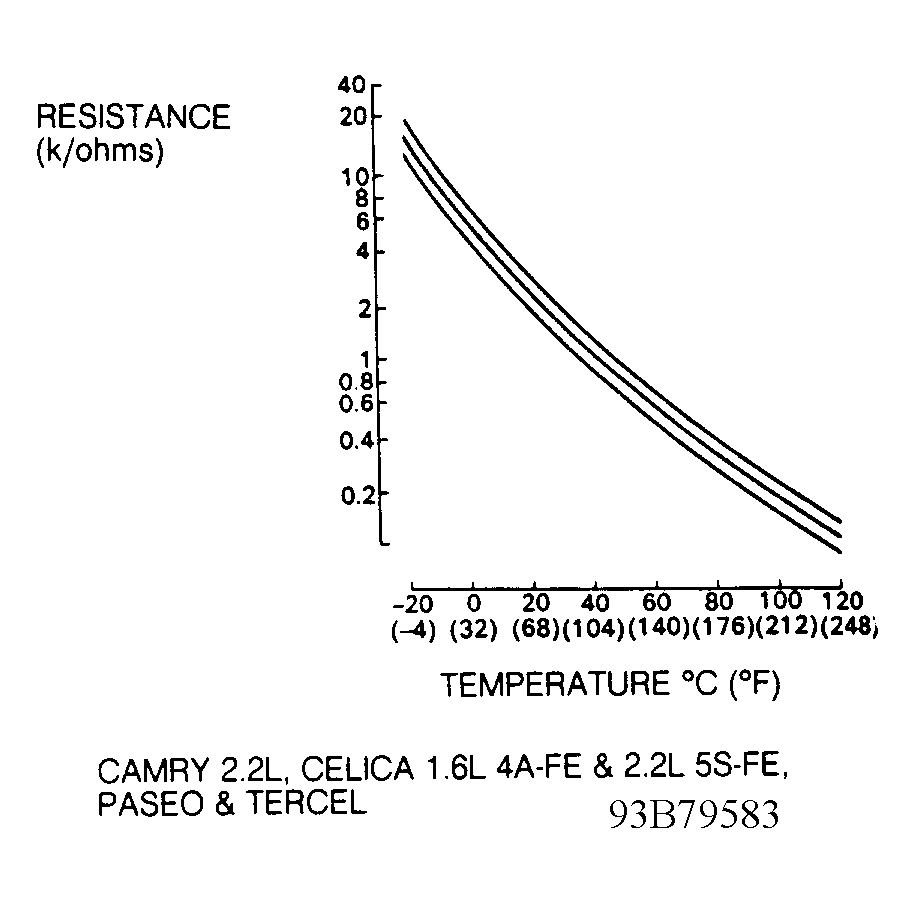

- Heat water and note that resistance is within specification in relation to temperature. See Fig 1. Replace air temperature sensor if defective.
