1993 Toyota Tercel BaseFACTORY OEM SERVICE PROCEDURE

Dashpot Control System

Warm engine to normal operating temperature. Ensure idle speed is correct. See IDLE SPEED & MIXTURE in ADJUSTMENTS article. Remove cap, filter and separator from dashpot. See Fig 1.
Start engine. Maintain engine speed at specified testing RPM. See DASHPOT TESTING SPECIFICATIONS table. Plug Vacuum Transmitting Valve (VTV) hole with your finger. See Fig 2.
Release throttle. Dashpot should be extended and dashpot setting RPM should be as specified. See DASHPOT TESTING SPECIFICATIONS table.
If dashpot setting RPM is incorrect, rotate dashpot adjusting screw to obtain correct RPM. See Fig 3. Repeat steps 3) and 4) and ensure proper adjustment is obtained.
Install separator, filter and cap. Install filter with the coarse surface facing outward (away from dashpot).
To check VTV operation, operate engine at dashpot testing RPM for a few seconds. Release throttle. Ensure engine returns to idle in a few seconds.

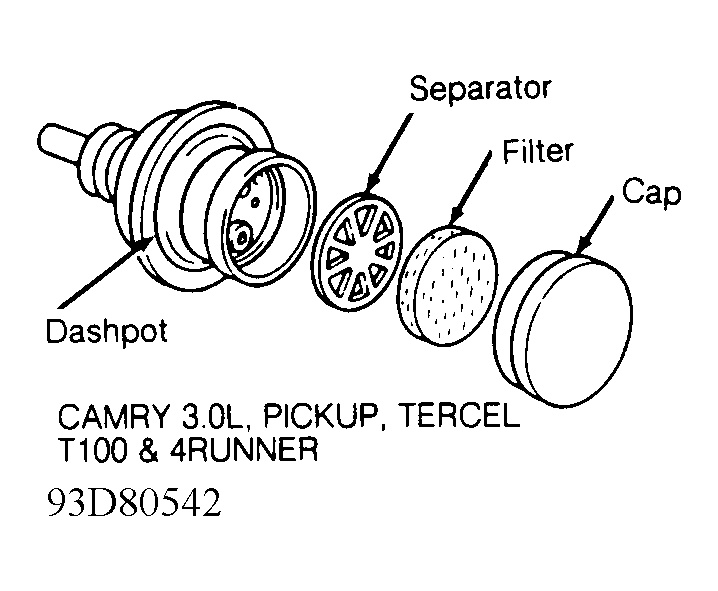

Fig 1: Identifying Dashpot

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
