1993 Toyota Land CruiserFACTORY OEM SERVICE PROCEDURE
Fuel Pump Resistor
- Ensure ignition is off. Disconnect fuel pump resistor electrical connector. See FUEL PUMP RESISTOR LOCATION table.NOTE: Fuel pump resistor may also be identified using appropriate illustration in THEORY/OPERATION article. On Celica Turbo and MR2 Turbo, ensure proper resistor is checked, as fuel injector solenoid resistor is located near fuel pump resistor.

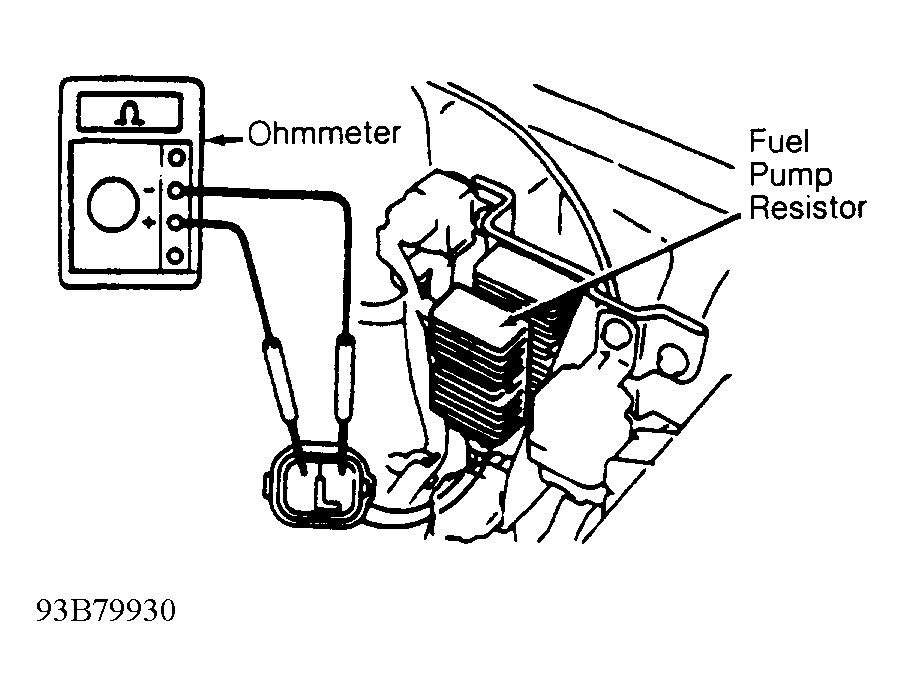

- Using ohmmeter, measure resistance between fuel pump resistor electrical terminals. See Fig 1. Replace fuel pump resistor if resistance is not about .73 ohm.
FUEL PUMP RESISTOR LOCATION
| Application | Location |
|---|---|
| Land Cruiser | On Driver's Side Of Engine Compartment Near Fenderwell & Contains 2-Wire Connector |
