1993 Toyota Corolla Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Pick-Up Coil Resistance

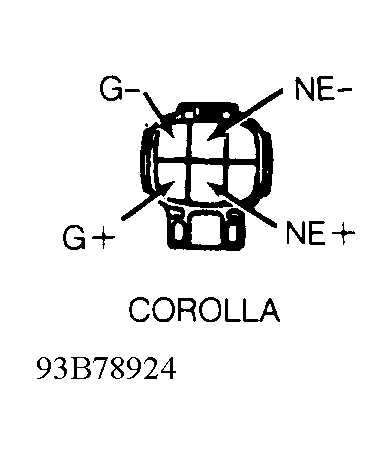

- Note pick-up coil terminal identification on the distributor. See Fig 1. Using ohmmeter, measure resistance between specified terminals. See PICK-UP COIL RESISTANCE SPECIFICATIONS table.
- Replace distributor assembly if pick-up coil resistance is not within specification.
PICK-UP COIL RESISTANCE SPECIFICATIONS
| Application Type | Terminals Tested | Pick-Up Coil (1) Ohms | ||
|---|---|---|---|---|
| Corolla | G+ & G- | 185-275 | ||
| Corolla | NE+ & NE- | 370-550 | ||
|
||||
