1991 Toyota Camry Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Idle Speed Control System: 2.0L
- Warm engine to normal operating temperature. Ensure idle speed is correct. Apply parking brake, block drive wheels and place transaxle in Neutral.

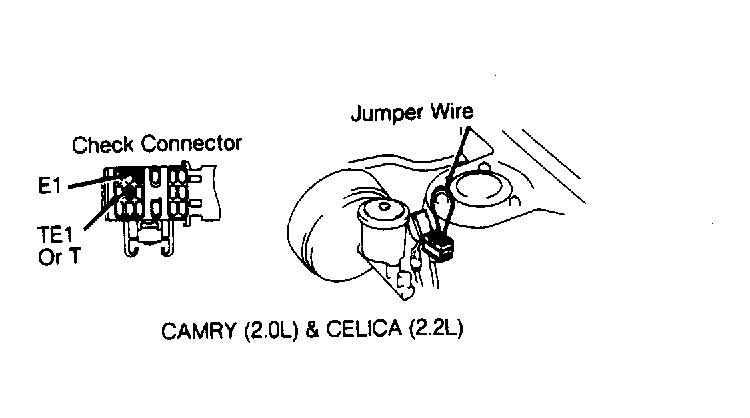

- Install jumper wire between terminals "TE1" (or "T") and "E1" of check connector located near left shock tower. See Fig 1. Engine RPM should increase to 1000-1300 RPM for 5 seconds and then return to idle.
- If engine RPM was not within specification, check Idle Speed Control (ISC) valve, wiring to ECU, and ECU grounds. If engine RPM was within specification, remove jumper wire. Turn ignition off.
- Unplug ISC valve connector on bottom of throttle body. Using ohmmeter, measure resistance between terminals "B+" and "ISC1", and between "ISC2" and "B+". See Fig 2. Replace valve if resistance is not within 16-17 ohms.
