1991 Toyota Camry Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Fuel Pressure-Up System
- Ensure coolant temperature sensor, air temperature sensor (in airflow meter) and circuits are operating correctly. See ENGINE SENSORS & SWITCHES .
- Fuel pressure-up system is controlled by ECU through a vacuum switching valve. The vacuum switching valve is fed current through the EFI main relay when the ignition is turned on. ECU controls the ground circuit. ECU will activate vacuum switching valve for 90-180 seconds when restarting engine at normal operating temperature.

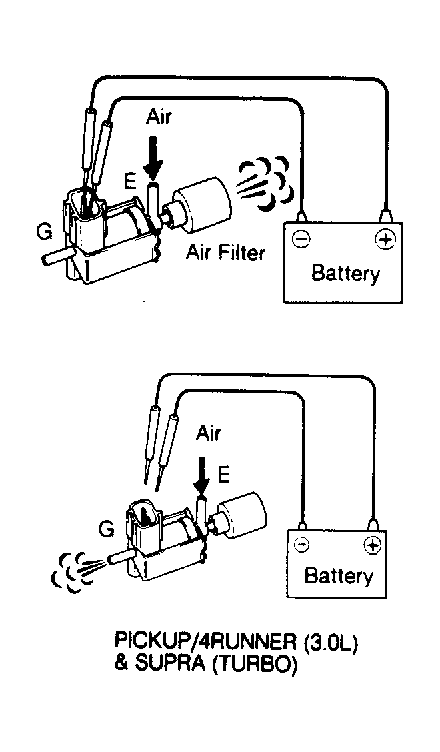

- Vacuum switching valve is located on lower side of intake manifold runners. Remove vacuum switching valve from vehicle. Check for continuity across valve wiring terminals. Resistance should be about 33-39 ohms at room temperature. There should be no continuity between each terminal and body of valve. To check operation, see Fig 1.
