1991 Toyota Camry Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Cold Start Injector
- Disconnect negative battery cable. Disconnect cold start injector wiring harness connector. Check resistance between terminals of injector. Replace injector if defective. Resistance should be 2-4 Ohms. If resistance is okay, relieve fuel system pressure.
- Remove cold start injector from vehicle. Install fuel hose to injector. Install system Union Adapters (9268-41045) to delivery pipe and cold start injector. Connect fuel hose to union adapters. See Fig 3. Connect Jumper Harness (9842-30050) to cold start injector.

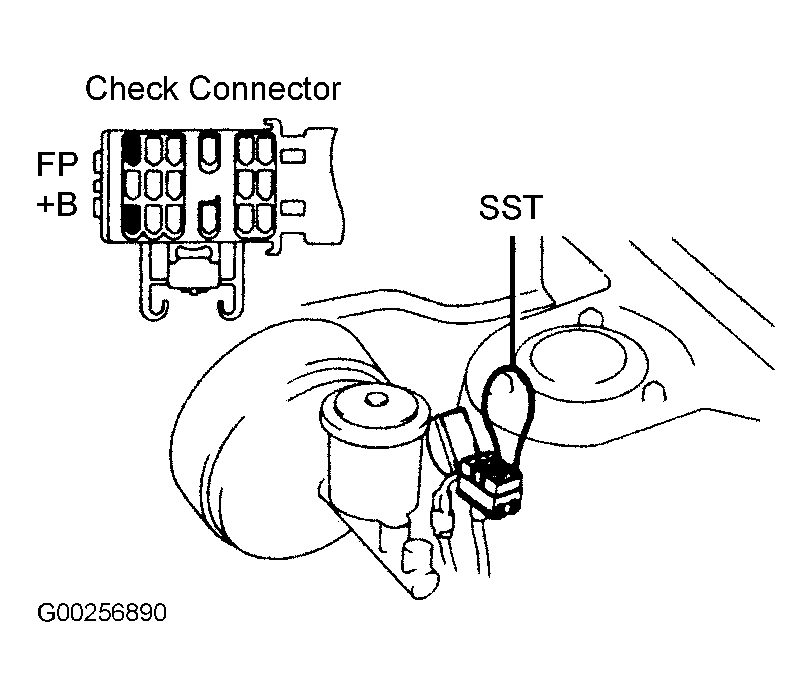

- Place container under cold start injector. Connect jumper wire to engine check connector terminals FP and B+ to pressurize fuel system. For engine check connector location, See Fig 1 or Fig 2 . Turn ignition on, with engine off.
