1990 Toyota Tercel DX, AutomaticFACTORY OEM SERVICE PROCEDURE
Cold Start Injector
- Disconnect negative battery cable. Disconnect cold start injector wiring harness connector. Check resistance between terminals of injector. Replace injector if resistance is not 2-4 ohms. If resistance is okay, relieve fuel system pressure.
- Remove cold start injector from vehicle. Install fuel hose to injector. Install system Union Adapters (9268-41045) to delivery pipe and cold start injector. Connect fuel hose to union adapters. See Fig 1. Connect Jumper Harness (9842-30050) to cold start injector.
- Place container under cold start injector. Connect jumper wire to engine check connector terminals FP and B+ to pressurize fuel system. For engine check connector locations, See Figure. Turn ignition on, with engine off.CAUTION: Perform cold start injector connector test in shortest possible time.

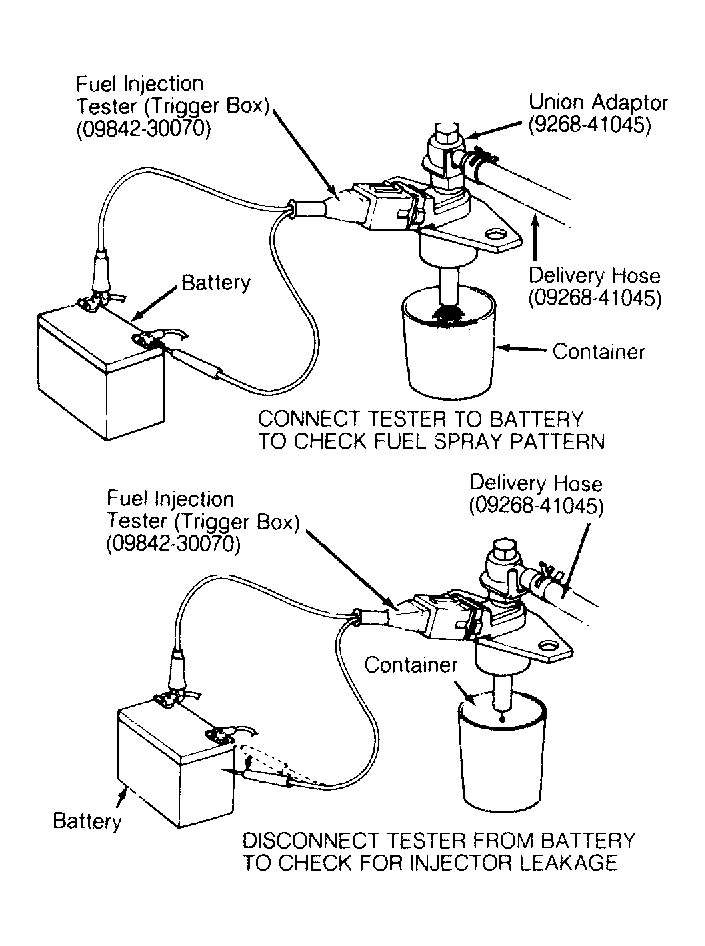

- Connect probes of Fuel Injection Tester (09842-30070) to battery. Connect other end of tester to cold start injector. See Fig 1. Ensure fuel spray is an even cone shape.
- Disconnect fuel injector tester harness and observe cold start injector. Maximum leakage should be one drop per minute with fuel pressure applied. Clean or replace cold start injector if defective.
