Neutral/Start Switch Test

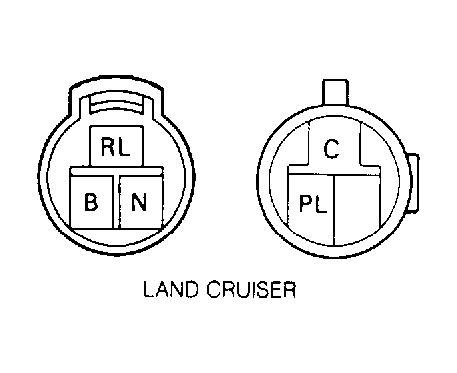

Unplug switch connector at transmission or transaxle. Note terminal identification. See Fig 1. Using ohmmeter, check for continuity at specified terminals with gearshift in correct range. See NEUTRAL/START SWITCH SPECIFICATIONS table.
| Gearshift Position | Terminal Continuity |
|---|---|
| "P" | C & PL, N & B |
| "R" | C & RL |
| "N" | B & N |
