1990 Toyota Corolla Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Engine Controls - System/Component Tests: Maintenance
- Inspect fuel tank, canister, vacuum relief filler cap, lines and hoses for damage, leaks, and deterioration every 60,000 miles or every 6 years. Replace gasket in vacuum relief filler cap.

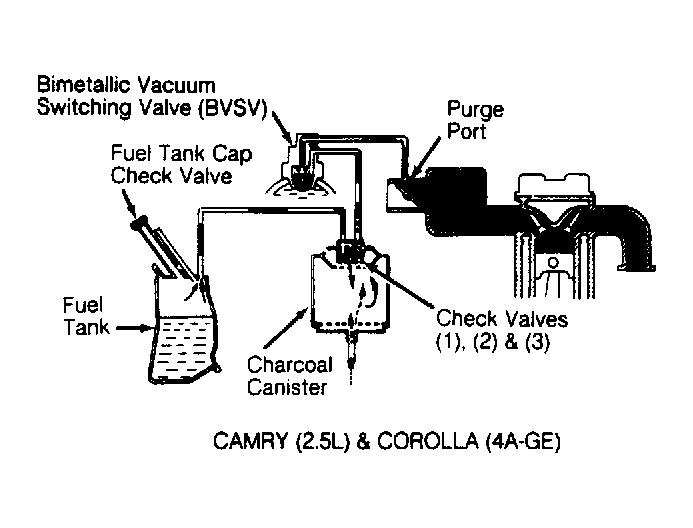

- To clean charcoal canister filter, remove hoses from canister and apply 43 psi (3 kg/cm2 ) air pressure to fuel tank port. Hold other top ports closed. Ensure that no carbon comes out of bottom port of canister.
