Turn ignition on, with engine off. On all models, place jumper wire across "+B" and "FP" terminals of engine check connector in engine compartment. See Fig 1. See ENGINE CHECK CONNECTOR LOCATION table.

ENGINE CHECK CONNECTOR LOCATION

Model

⁽¹⁾ Location

Cressida

Left shock tower

Land Cruiser

On firewall, under wiper motor

Supra

Front of left shock tower

⁽¹⁾	Label on inside of engine check connector cover has check connector pin identification. All "FP" and "B" pins will be in same location.

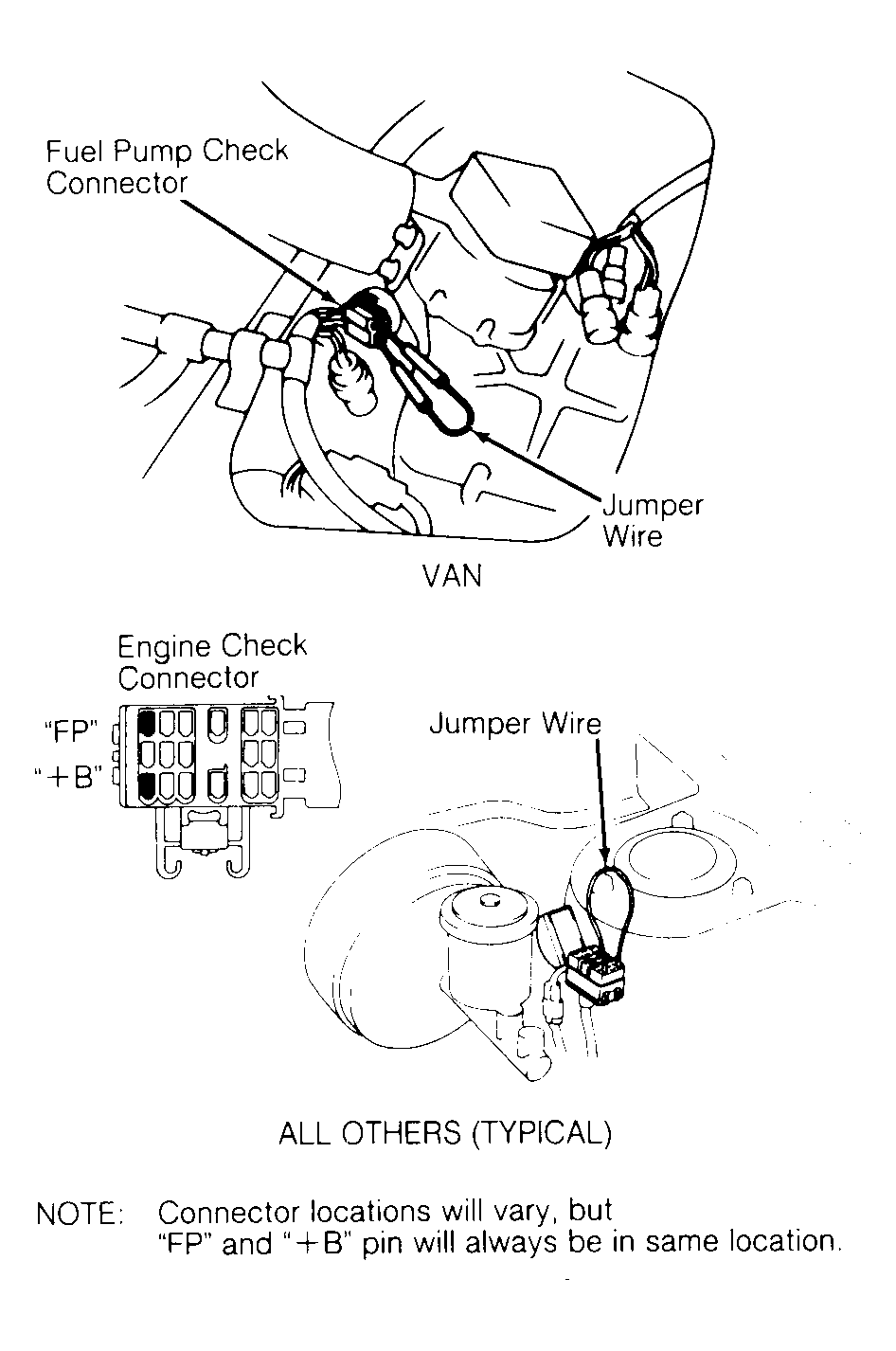

Fig 1: Engine Check Connector & Fuel Pump Check Connector Location

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

On all models, listen for fuel pump running sound. Feel for pressure in fuel line between filter and fuel rail. Turn ignition off. Remove jumper wire. If fuel pump sound was present and fuel hose showed pressure, go to FUEL SYSTEM PRESSURE TEST.
If no pressure or fuel pump sound was present on all models, connect a jumper wire from battery source to "FP" terminal of engine check connector.
NOTE: All models use in-tank fuel pump. Fuel pump contains internal relief valve and check valve.
If fuel pump ran after battery source was connected to "FP" terminal in step 3), check EFI main relay and related wiring. Also check "EFI" and "IGN" ("AM2" on MR2) fuses. See FUEL PUMP CONTROL CIRCUIT in this article. For more information on wiring, see WIRING DIAGRAMS in this section.
