1988 Toyota 4Runner Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Turbocharging Pressure Vacuum Switching Valve (VSV)

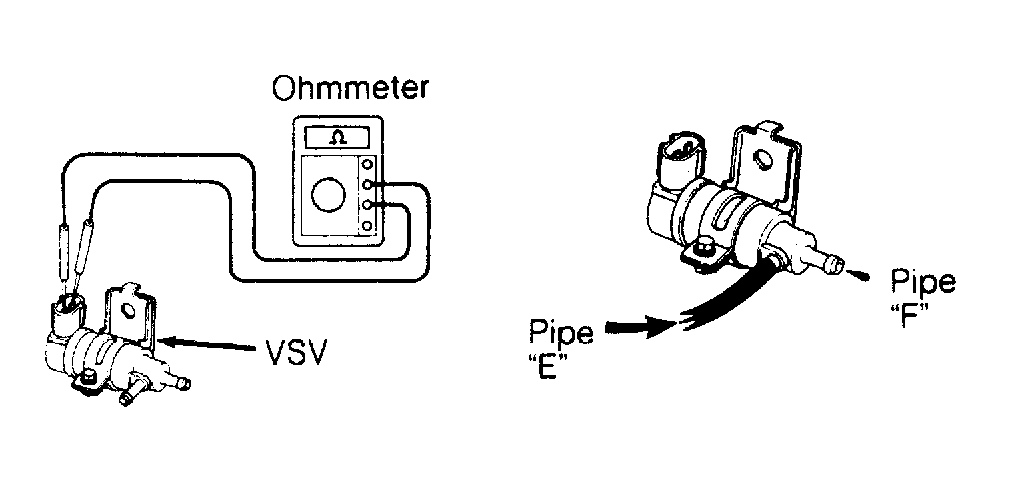

- Using an ohmmeter, check continuity between both terminals of turbocharging pressure VSV connector. See Fig 1. Replace VSV if no continuity exists.
- Check that no continuity exists between VSV case (body) and each terminal. If continuity exists, replace VSV.
- Check that air does not flow from pipe "E" to pipe "F". If air flows through from pipe "E" to pipe "F", replace VSV.
