Throttle Position Sensor (TPS)

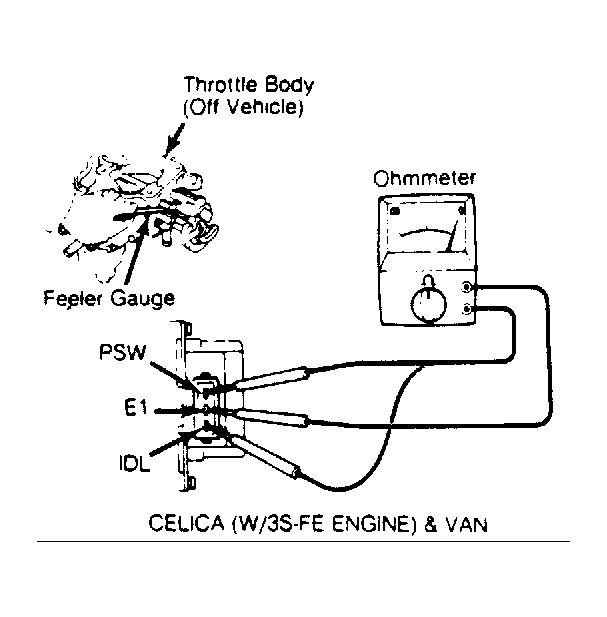

Turn ignition off and disconnect electrical connector at TPS. Insert a thickness gauge between throttle stop screw and throttle lever. Using an ohmmeter, check resistance values. See Fig 1. If values are not as specified in table, adjust or replace TPS.
| Throttle Clearance | Terminals | Ohmmeter Reading |
|---|---|---|
| .022" (.57 mm) | IDL - E1 | Continuity |
| .022" (.57 mm) | PSW - E1 | No Continuity |
| .022" (.57 mm) | IDL - PSW | No Continuity |
| .034" (.85 mm) | IDL - E1 | No Continuity |
| .034" (.85 mm) | PSW - E1 | No Continuity |
| .034" (.85 mm) | IDL - PSW | No Continuity |
| Fully Open | IDL - E1 | No Continuity |
| Fully Open | Psw - E1 | Continuity |
| Fully Open | IDL - PSW | No Continuity |
