1987 Toyota 4Runner SR5, 22-RTEFACTORY OEM SERVICE PROCEDURE

Power Window Master Switch

Inspect the switch continuity between terminals.

POWER WINDOW MASTER SWITCH INSPECTION (1)

Switch Position Type Terminal Arm Rest Type Terminal Door Trim Type Terminal Switch Side
Window Unlock
Up 1 & 10, 4 & 5 1 & 3, 4 & 8 Driver's Side
Up 1 & 9, 4 & 6 1 & 2, 4 & 5 Passenger's Side
Off 10, 4 & 5 3, 4 & 8 Driver' Side
Off 9, 4 & 6 2, 4 & 5 Passenger's Side
Down 10 & 4, 1 & 5 3 & 4, 1 & 8 Driver' Side
Down 9 & 4, 1 & 6 2 & 4, 1 & 5 Passenger's Side
Window Lock
Up 1 & 10, 4 & 5 1 & 3, 4 & 8 Driver's Side
Up 1 & 9 1 & 2 Passenger's Side
Off 10, 4 & 5 3, 4 & 8 Driver' Side
Off 9 & 6 2 & 5 Passenger's Side
Down 10 & 4, 1 & 5 3 & 4, 1 & 8 Driver' Side
Down 1 & 6 1 & 5 Passenger's Side
(1) If continuity is not as specified, replace the switch.

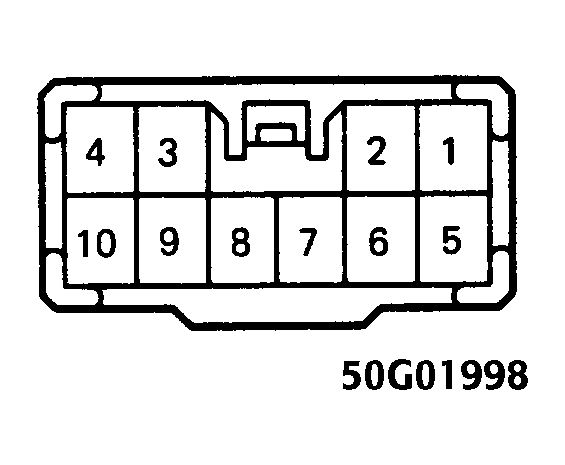

Fig 1: Power Window Master Switch (Arm Rest Type)
G50G01998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
