Cold Mixture Relay

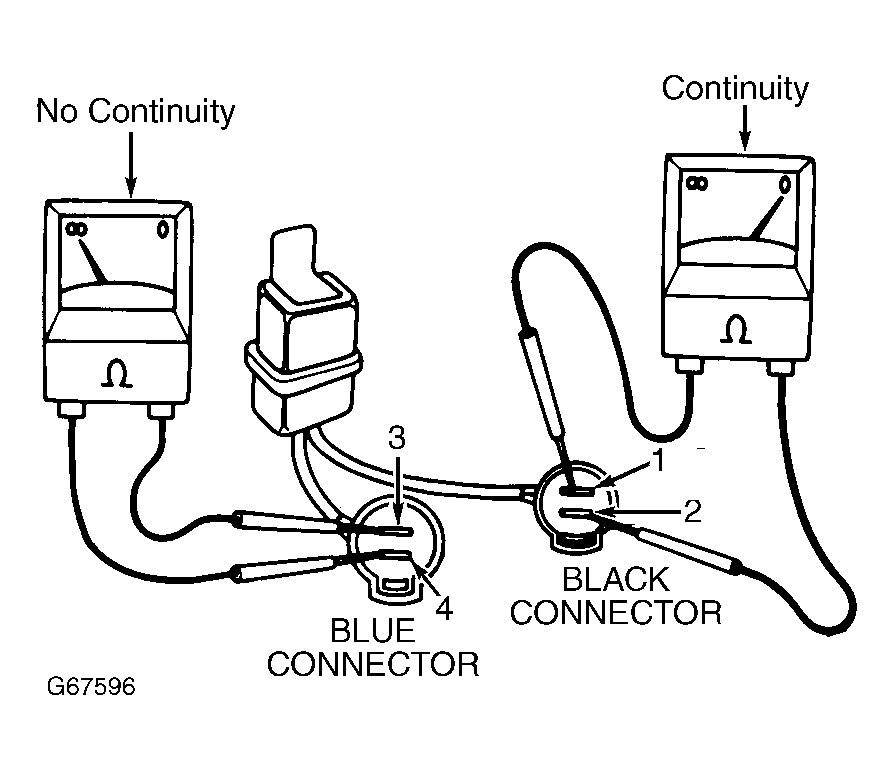

Ensure continuity is present between terminals No. 1 and 2. No continuity should be present between terminals No. 3 and 4. Apply battery voltage to terminals No. 1 and 2. Continuity should be present between terminals No. 3 and 4. See Fig 1. See COLD MIXTURE RELAY LOCATION table for location of component.
| Application | Relay Location |
|---|---|
| Corolla RWD & FWD | Left Fender Apron |
| Pickup, 4Runner | Right Fender Apron |
| Tercel Sedan | Near Wiper Motor |
| Tercel Wagon | Right Fender Apron |
