1986 Toyota Pickup Base, 22-RTE, R151FFACTORY OEM SERVICE PROCEDURE
Throttle Position Sensor (TPS)

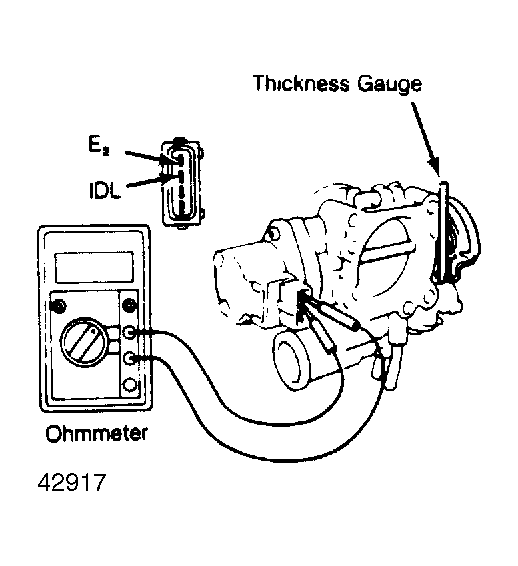

- Loosen 2 TPS retaining screws. Insert a thickness gauge between throttle stop screw and throttle. With ignition off and electrical connector disconnected, connect ohmmeter between terminals IDL and E1 or E2. See Figure.THROTTLE POSITION SENSOR ADJUSTMENT
Model Gap In. (mm) All Models .019 (.47) - Gradually turn TPS counterclockwise until ohmmeter needle deflects. Secure TPS retaining screws. Using a thickness gauge, recheck the continuity between terminals IDL - E1 or E2.
