1986 Toyota Pickup Base, 22-RTE, R151FFACTORY OEM SERVICE PROCEDURE
Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location |
|---|---|
| A/C-Heater Blower Motor Resistor | On left side of blower housing. See Figure. |
| A/C Idle Stabilizer Amplifier | On evaporator housing. |
| Cruise Control Actuator | On left side of engine compartment. |
| EFI Fusible Links (30 Amp) | On fuse/relay panel No. 1. |
| EFI Solenoid Resistor | On right side inner fender. See Figure. |
| Fuel Heater (Diesel) | In top of fuel filter housing. |

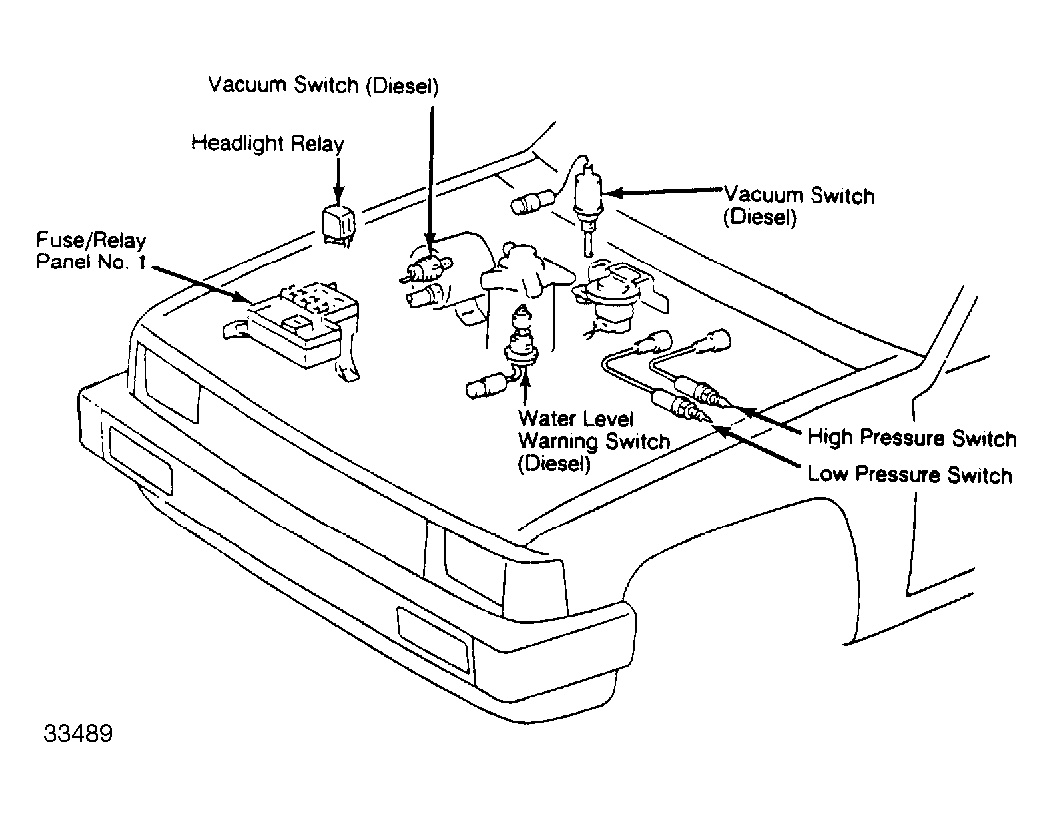

| Fuse/Relay Panel No. 1 | Front right corner of engine compartment. See Figure, Figure & FigureFigure . |

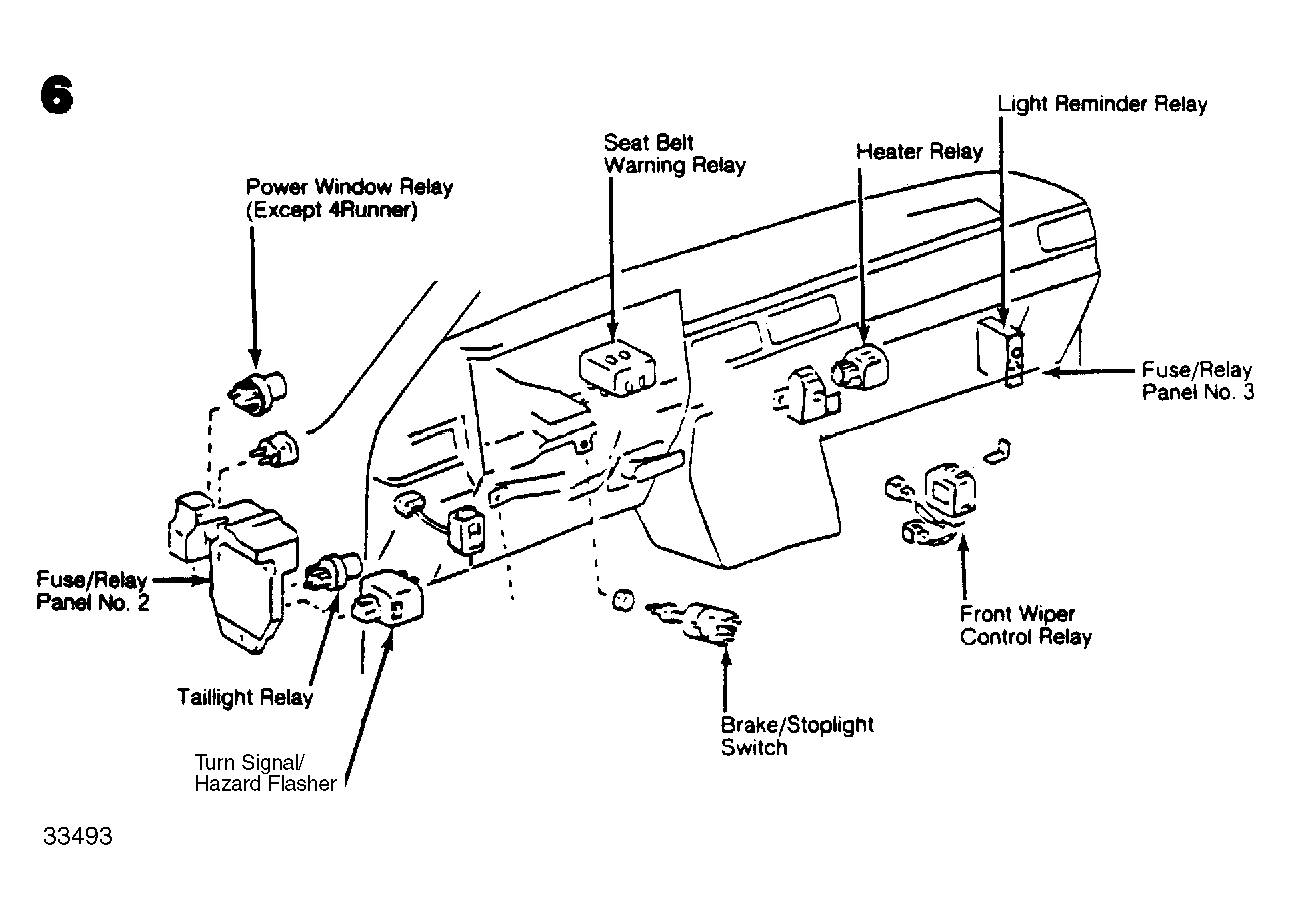

| Fuse/Relay Panel No. 2 | Under left side of dash. See Figure. |
| Fuse/Relay Panel No. 3 | Under right side of dash. See Figure. |

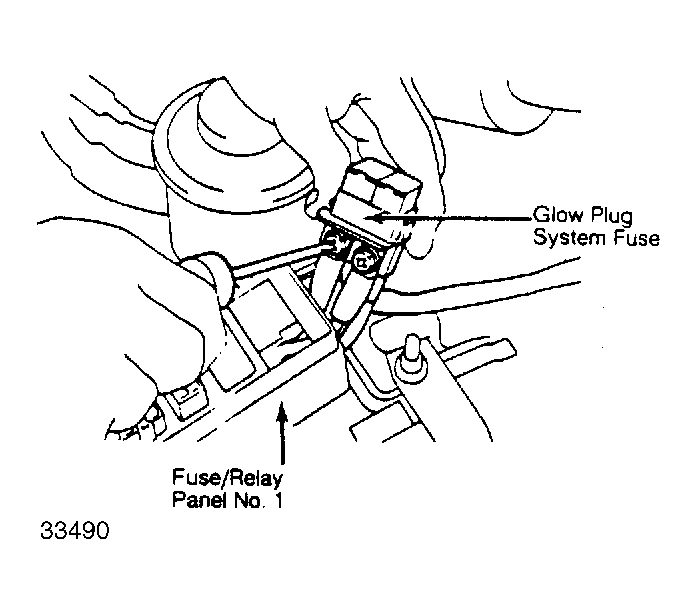

| Glow Plug System Fuse (Diesel) | In fuse/relay block No. 1. See Figure & Figure . |
| Ignition Ignitor | On side of ignition coil. |
