ECS Resistance Tests

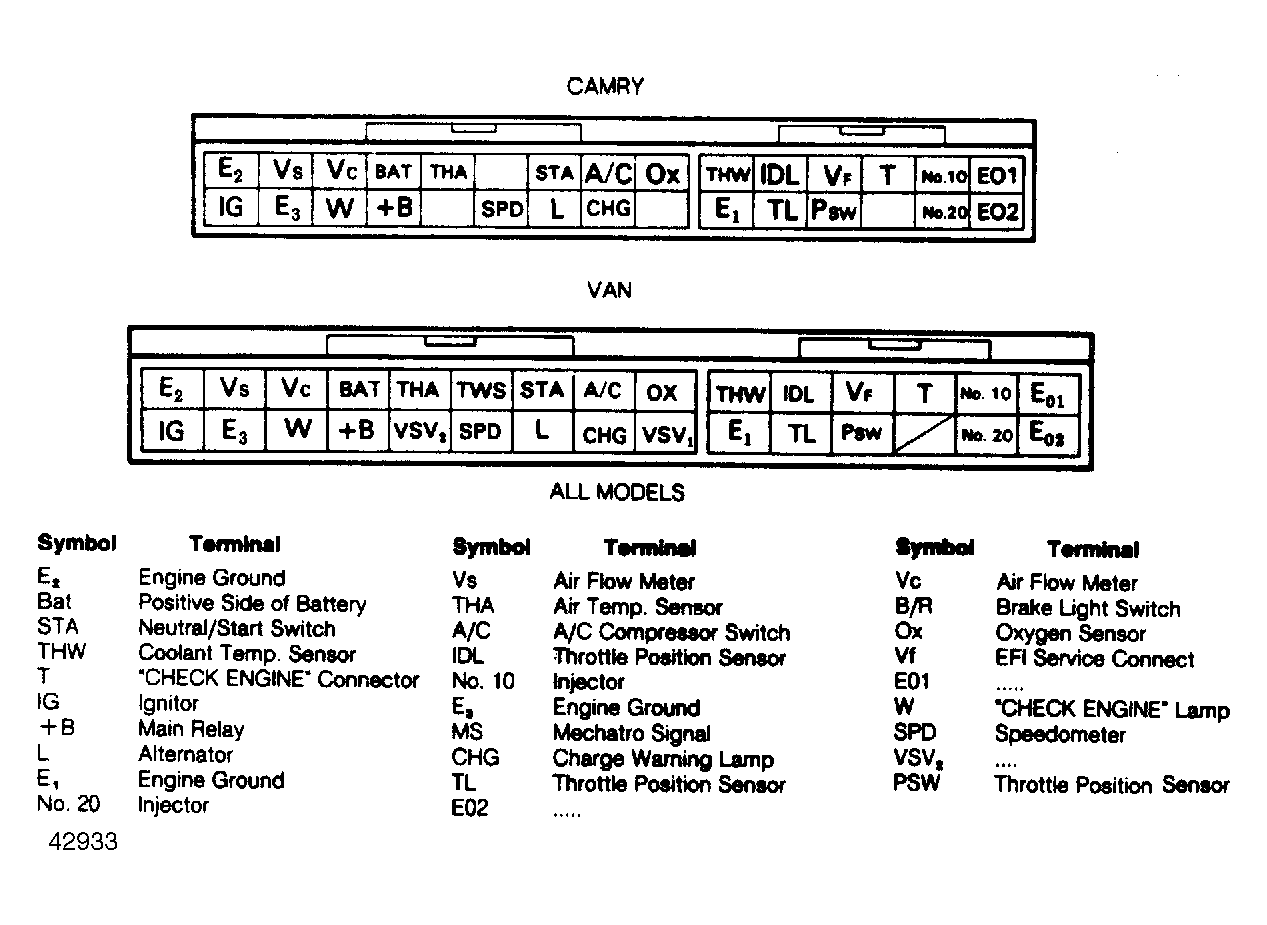

The ECS can be checked using an volt/ohmmeter. Before making resistance tests, turn ignition off and disconnect wiring connectors at ECU. Insert volt/ohmmeter probes into wiring connectors from wire side. Measure resistance at connector terminals, NOT ECU terminals.
| Code No. | Probable Cause |
|---|---|
| 2 & 3 | Air Flow Meter or Circuit, ECU |
| 4 | Coolant Temp. Sensor or Circuit, ECU |
| 5 | Oxygen Sensor or Circuit, ECU |
| 6 | Ignition System Circuit, Distributor, Coil, Ignitor, ECU |
| 7 | Throttle Position Sensor or Circuit, ECU |
