1985 Toyota MR2FACTORY OEM SERVICE PROCEDURE

Miscellaneous Components

MISCELLANEOUS COMPONENTS LOCATION

Component Location
A/C Amplifier No. 1 Mounted on left side of A/C cooling unit. See Figure & Figure .
A/C Amplifier No. 2 Below digital clock under instrument panel. See Figure & Figure .
A/C Control Resistor Below digital clock under instrument panel. See Figure.
"Check Engine" Test Connector Near airflow meter.
Cruise Control Actuator Left front corner of engine compartment. See Figure.

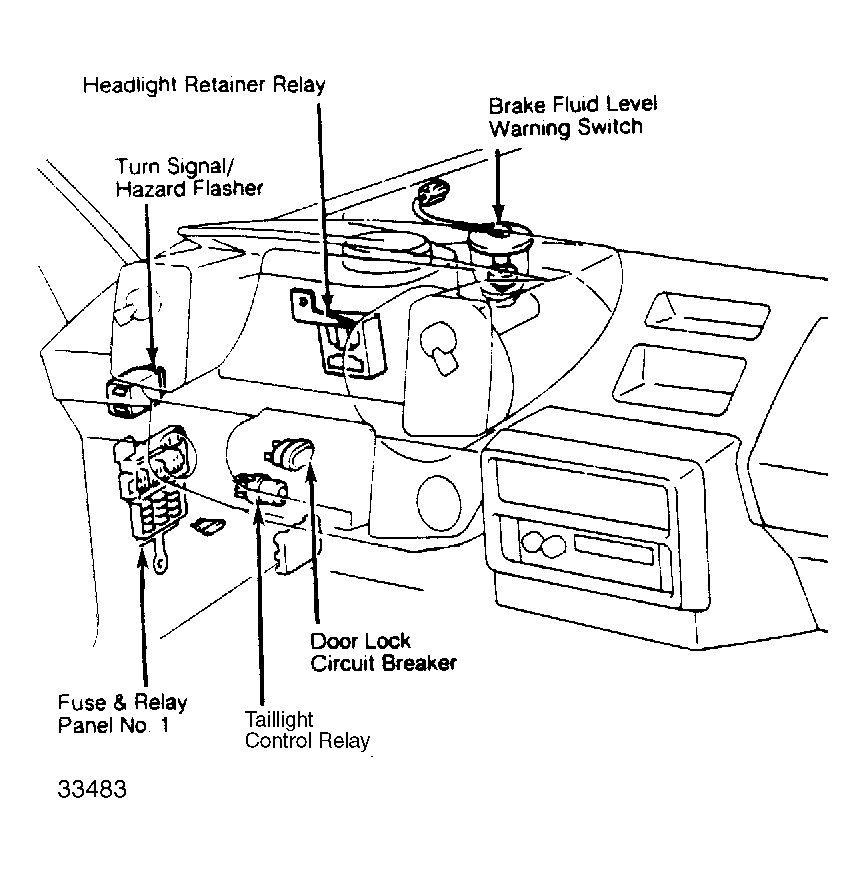

Door Lock Circuit Breaker On fuse/relay panel No. 1. See Figure & Figure .
EFI Fusible Link Attached to positive battery cable at battery.

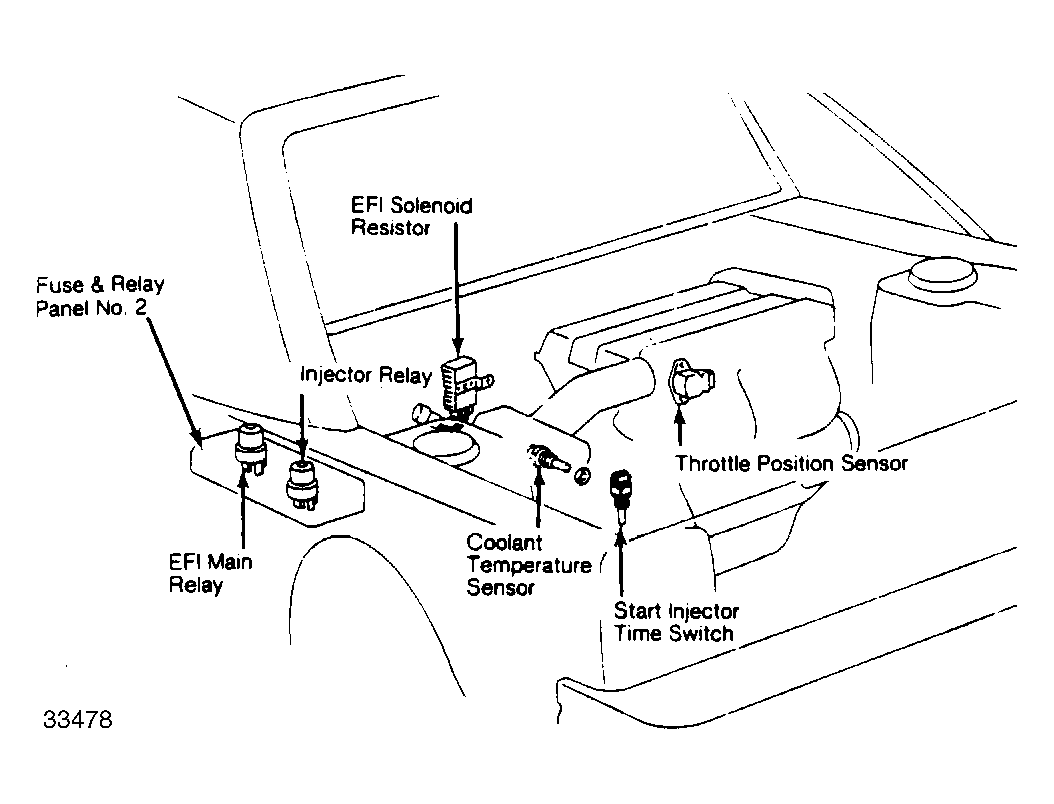

EFI Solenoid Resistor On front wall of engine compartment. See Figure.
Fuse/Relay Panel No. 1 On left kick panel. See Figure & Figure .

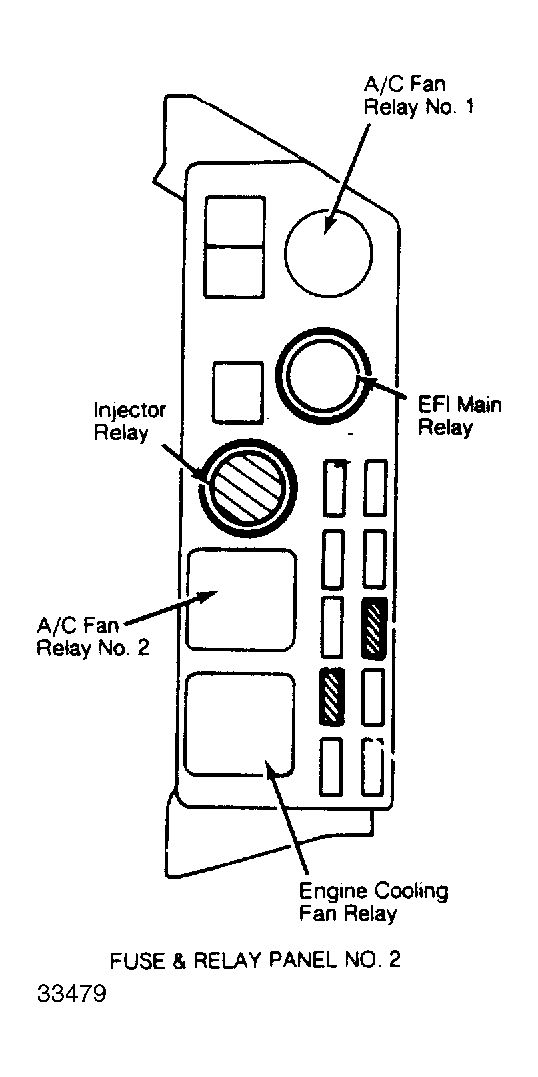

Fuse/Relay Panel No. 2 Left front corner of engine compartment. See Figure, Figure & Figure .

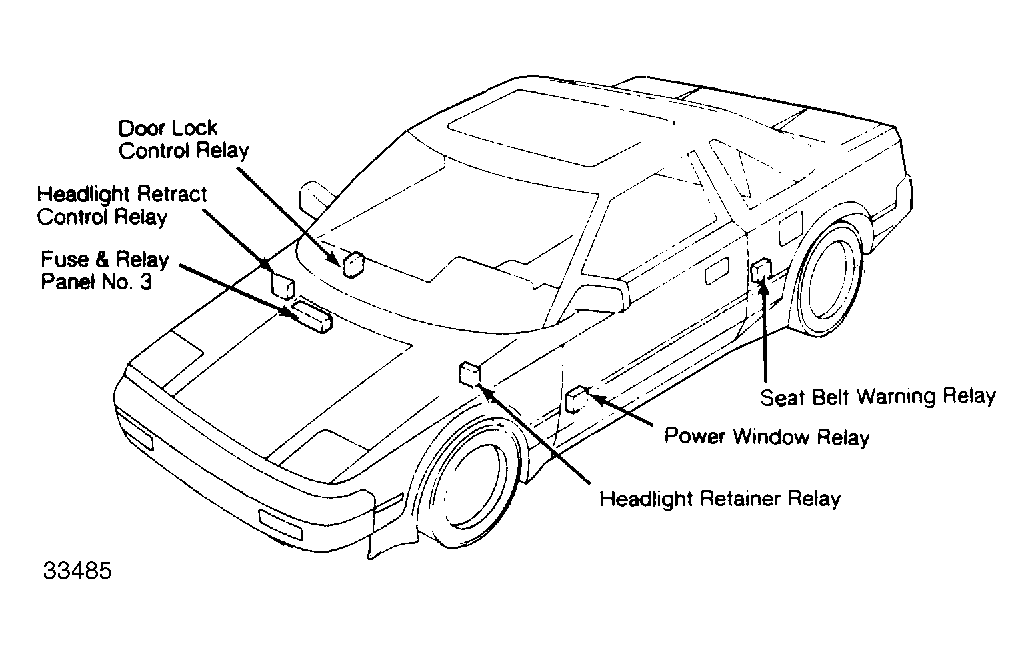

Fuse/Relay Panel No. 3 Left front corner of front cargo compartment. See Figure.
Fuse/Relay Panel No. 4 Behind right kick panel. See Figure & Figure .
Headlight Fusible Link (60 Amp) Behind coverplate, under fuse/relay panel No. 2.
