Airflow Meter

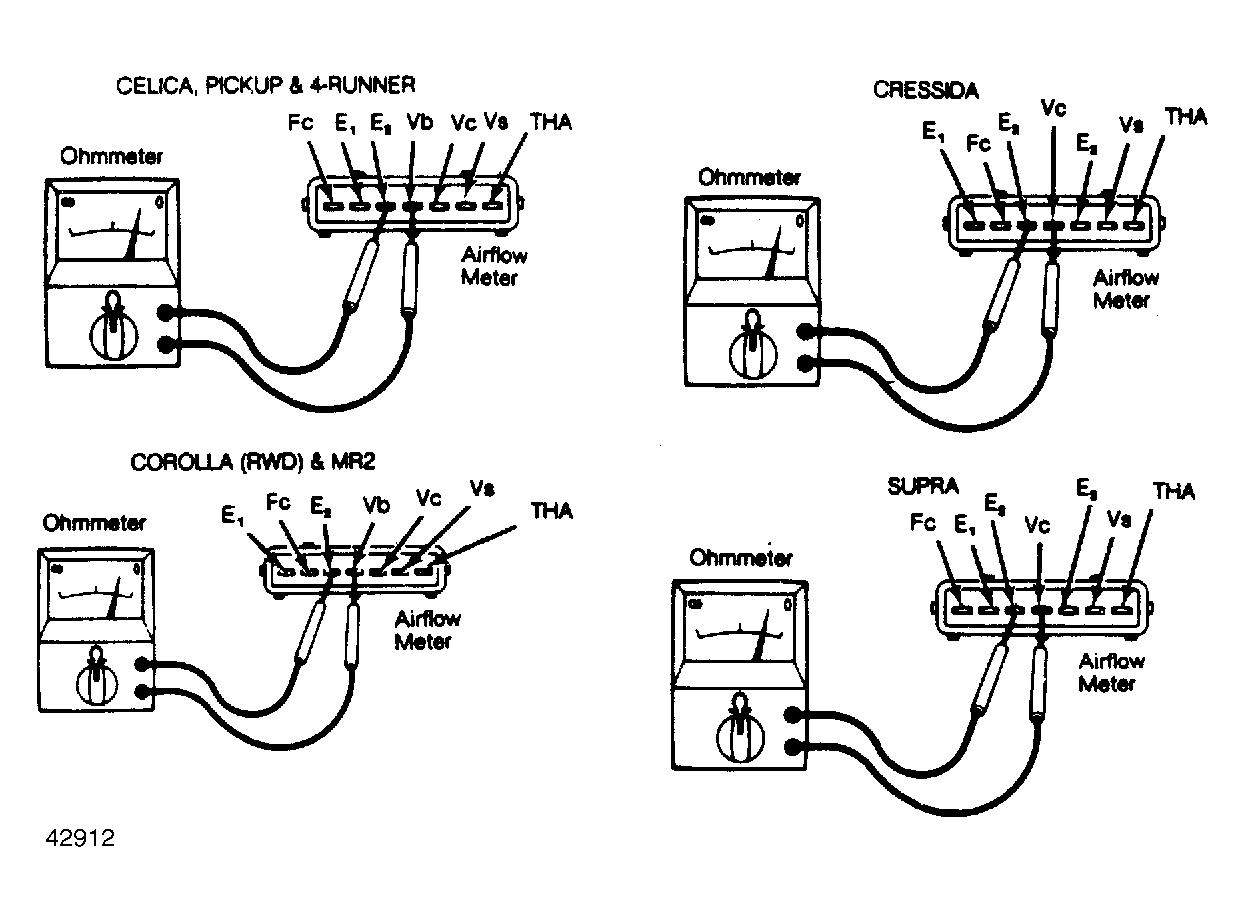

Turn ignition off. Disconnect wiring connector from airflow meter. Using an ohmmeter, measure resistance between each terminal. See Fig 1. If resistance values do not meet specifications shown in chart, replace airflow meter.
| Terminals | Condition | Ohms | ||
|---|---|---|---|---|
| E1 - Fc | Flap Closed | Infinity | ||
| " | Flap Open | Zero | ||
| E2 - THA | 4°F (-20°C) | 10,000-20,000 | ||
| " | 32°F (0°C) | 4000-7000 | ||
| " | 68°F (20°C) | 2000-3000 | ||
| " | 104°F (40°C) | 900-1300 | ||
| " | 140°F (60°C) | 400-700 | ||
| E2 - Vb | N/A | 200-400 | ||
| E2 - Vc | N/A | 200-400 | ||
| E2 - Vs | Flap Closed | 20-400 | ||
| " | Flap Open | (1) 20-1000 | ||
|
||||
