1985 Toyota 4Runner Base, AutomaticFACTORY OEM SERVICE PROCEDURE
High Altitude

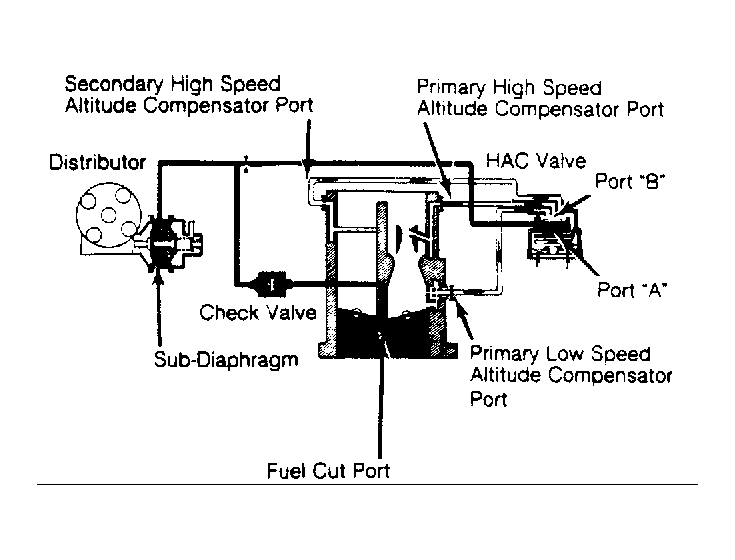

- Warm up engine and check ignition timing at idle. Disconnect hose from distributor sub-diaphragm, and plug hose end.
- Check ignition timing. Timing should be 5° BTDC. Reconnect hose to sub-diaphragm. Verify that timing advances to about 12° BTDC.
- Disconnect vacuum hose between check valve and vacuum pipe at vacuum pipe side. Plug pipe end.
- Disconnect 3 hoses from top of HAC valve. Blow air into each hose and check that air flows into carburetor. Reconnect hoses to proper locations.
